■ Product Introduction

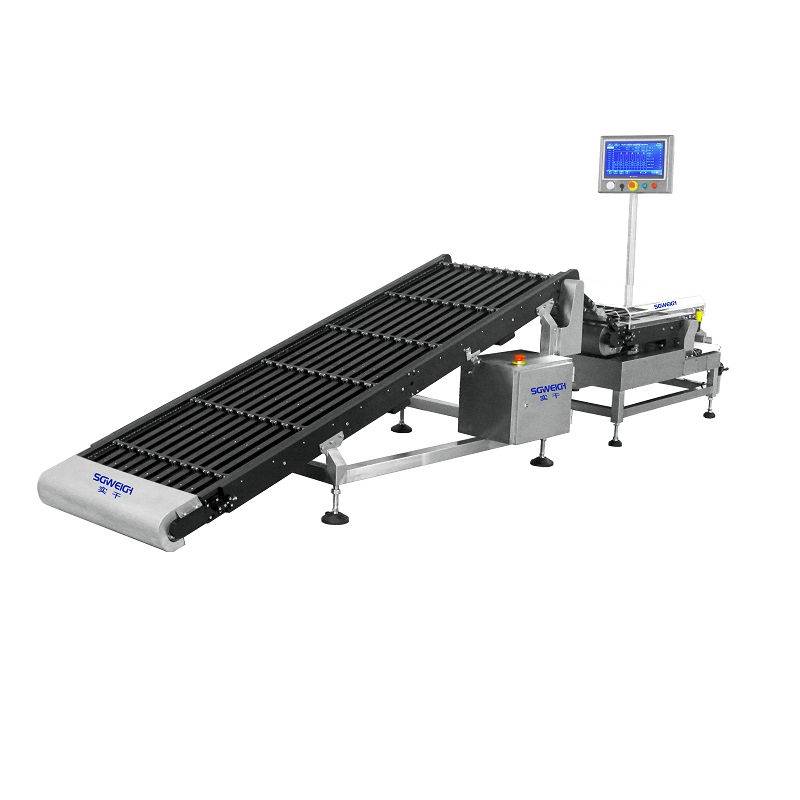

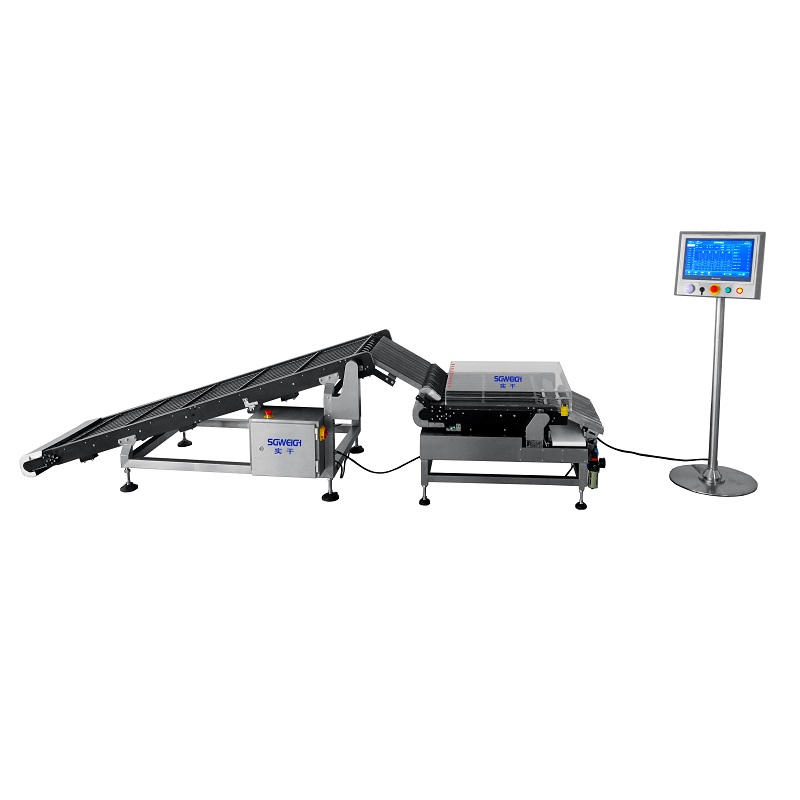

The 10-Lane High-Speed Stick Checkweigher is a high-precision online weighing device designed for multi-lane, small-package products. It enables simultaneous multi-lane inspection and rejection, significantly improving the efficiency and inspection capabilities of packaging lines.Stick Weighing Equipment utilizes a modular design, with each column serving as an independent weighing unit. Equipped with high-precision load cells and a high-speed data acquisition system, it ensures stable weighing accuracy even at high production volumes.
■ Tech Specifications
Type:SG-10X
Weighing scope:1-50g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Speed:40-60 pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
■ Main Features
●10-channel simultaneous detection, supporting independent or linked rejection control.
●High weighing accuracy and fast speed, with a single row reaching up to 70 times/minute.
●Stainless steel construction, compliant with GMP and food safety standards.
●Multi-function touchscreen operating system, supporting Chinese and English language switching and data export.
●Flexible communication interfaces (such as Ethernet, RS485, and USB) facilitate integration into automated production lines.
●Intelligent self-diagnosis and abnormality alarm functions ensure stable and reliable production processes.
■ Application
●Multi-channel weight detection system behind multi-lane packaging machines.
●Multi-line weighing and sorting for products such as bars, sticks, and bags.
●Suitable for high-capacity, multi-format, and batch production scenarios.
■ Customers
■ Exhibitions
■ Packaging & Delivery
The equipment is carefully packed in a sturdy wooden case with foam protection inside to prevent vibration or damage during transportation. All goods are shipped by professional logistics to ensure safe and timely delivery.
If any special requirements, we will pack it as requested.
