■ Product Introduction

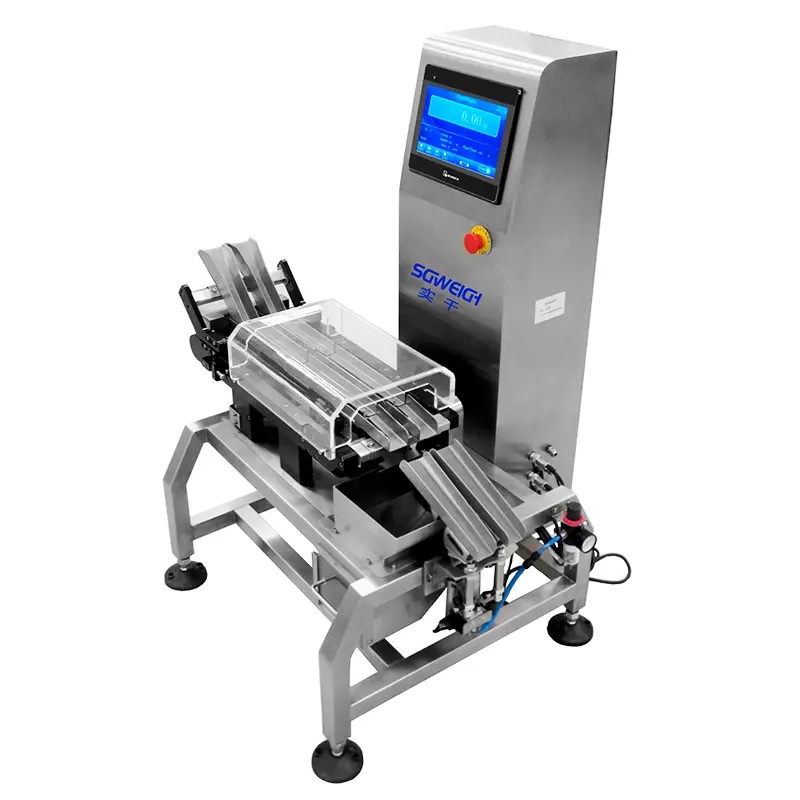

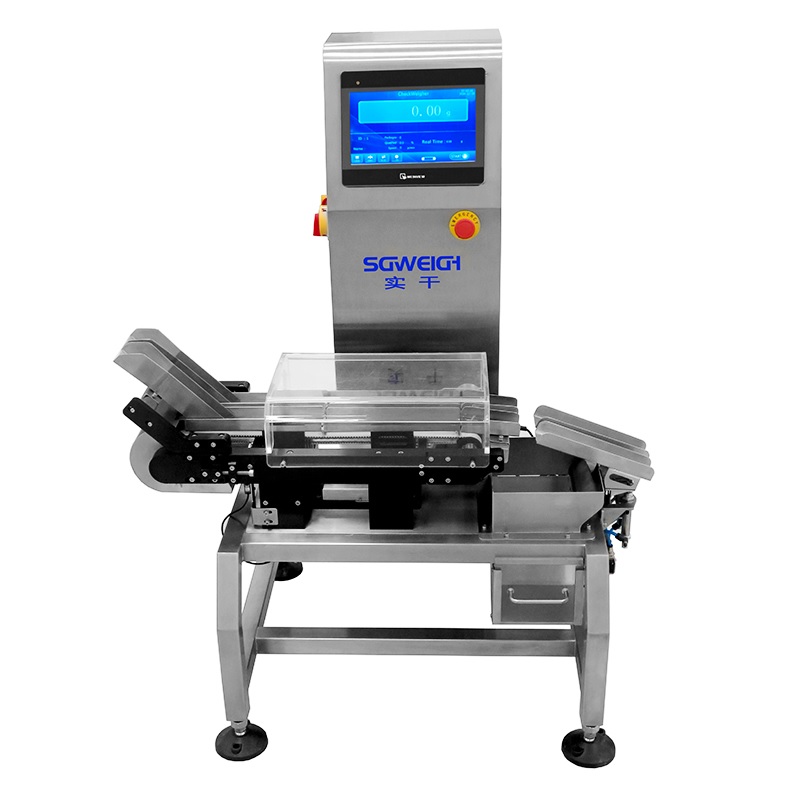

This Dual-lane Conveyor Checkweigher is designed for checking products in two lanes, ensuring the weight of food, pharmaceuticals, and other products.
The dual lanes can be adapted to accommodate different wheelbases on the customer’s production line and can be customized with reject modules, such as inclined conveyors or dual reject cylinders positioned in opposite directions.
Stick Tube Rod Pack Checkweigher
■ Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min/lane
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
■ Main Features

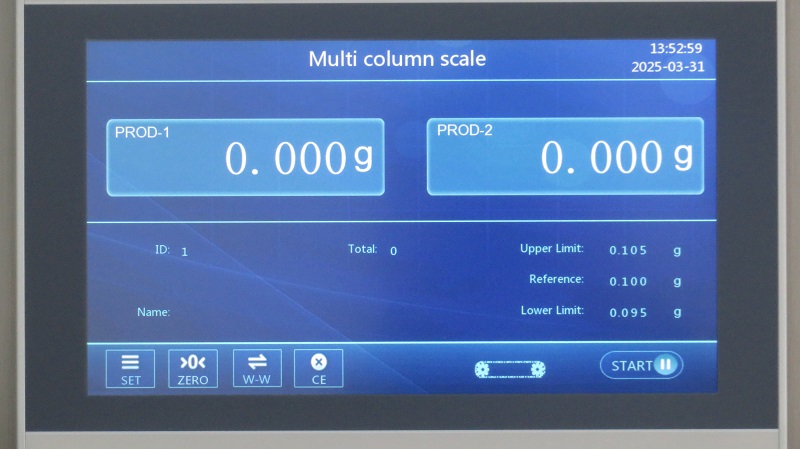

1.Touch screen human-machine dialogue.
2.The default operation interface is Chinese and English.
3.Weight compensation function.
4.Bar charts and curve charts are commonly used by customers to analyze product qualification rates.
5.Three-level operation authority management, supporting self-set password.
6.100 product recipe presets stored.
7.Unqualified products are automatically rejected.
8.100% weight inspection.
9.Automatic removal of incorrect weights.
10.Improved production efficiency.
Optional
USB port
RS485/232/LAN connection port
Sound-light alarming lamp
■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
■ FAQ
Q1. Are you a manufacturer or a trader?
A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team and factory.
Q2. How many types of checkweighers do you have?
A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company’s checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.
Q3. What factors should be considered when choosing a checkweigher?
What is the product you want to weigh?
How many grams/kg of the product?
What is the size of the product?
What are the speed requirements?
Accuracy requirements?
Based on the above information, our sales will recommend the most suitable checkweigher for you.
Q4. How much does the checkweigher cost?
A:There is no quick,easy answer to this question.Our machines are customer-specific, so “standard pricing” is not usually available.Pricing depends largely on your unique needs,such as the product you want to weigh, the size of the product,the speed you want to achieve,or the complexity of the process.Contact us to get a specific quote.
Q5. What kind of shipping methods can you provide?
A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.
Q6. Do you accept customer logos and customizations?
A: We accept all kinds of customization and logos for all products.
Q7. How is the product packaging?Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
