|| Product Introduction

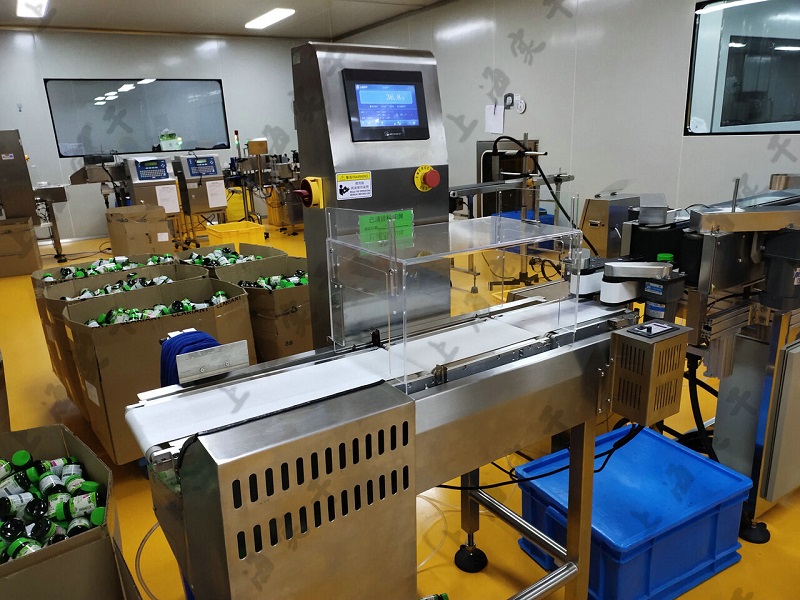

Dynamic Checkweigher with Reject System is an automated, high-speed industrial scale integrated into a production or packaging line. Its primary purpose is to weigh products while they are in motion and then sort them based on pre-set weight parameters.Box Weight Checker removes unqualified products from the production line.
|| Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
Feeding conveyor size:316mmX150mm
Weighing conveyor size:316mmX150mm
Rejection conveyor size:510mmX150mm
Weight:About120KG
|| Main Features
1.100% Weight Inspection:
Every single product is checked, unlike manual statistical sampling.
2.Reduces Giveaway:
Prevents “overfilling,” which saves massive amounts of product and money over time.
3.Protects Brand Reputation:
Prevents “underfilling,” which leads to customer dissatisfaction.
4.Process Control:
Provides real-time data and statistical process control to identify trends.
5.Increases Line Efficiency:
Fully automates the quality control process, reducing labor costs and human error.
6.Traceability:
Data logging provides proof of compliance for audits.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
