■ Product Overview

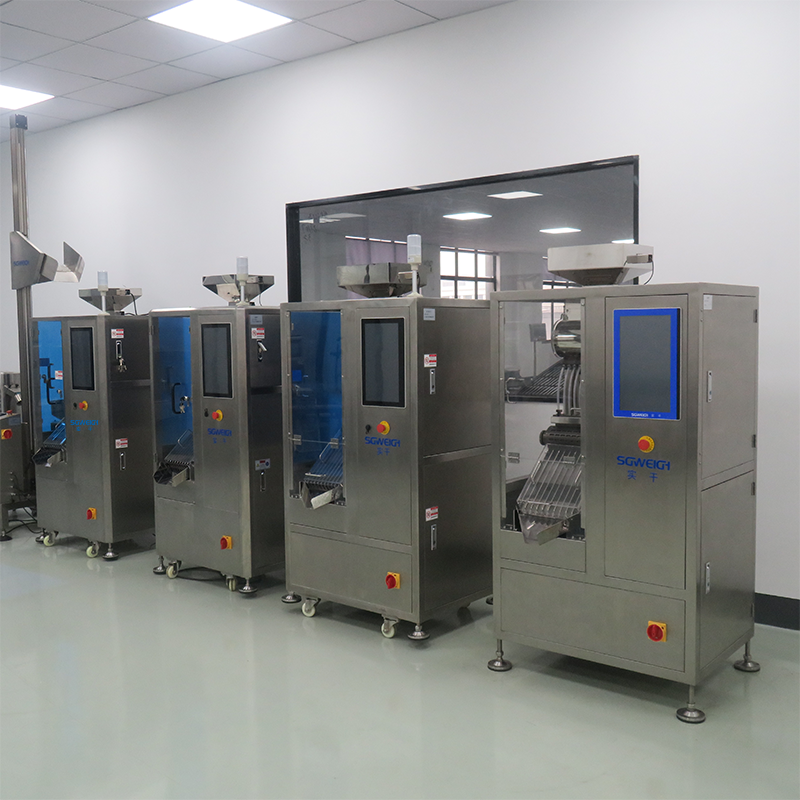

The Capsule Checkweigher is a high-precision online weighing device specifically designed for the pharmaceutical industry. It performs real-time weight checks on hard capsules, soft capsules, and transparent capsules, using high-speed dynamic weighing technology to achieve full inspection, rejection, and data traceability for each capsule.Tablet Weight Checker helps pharmaceutical companies ensure consistent powder content in each capsule and is an indispensable key piece of equipment in the quality control system of capsule production lines.
■ Tech Specifications
Type:SG-JN10
Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:100000 PCS/HR
Number of columns:10 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Weight of Machine :350kg
Shell material:SUS304
■ Main Features
1. High-Precision Dynamic Weighing (±1–2 mg level)
Utilizing a high-sensitivity electronic weighing module and shock-absorbing structure, it achieves milligram-level detection accuracy even at high-speed conveying, ensuring precise identification of minute dosage differences.
2. 100% Full Inspection Mode
Weighing each capsule individually, rather than sampling, allows for real-time detection of anomalies such as insufficient or excessive filling, powder leakage, etc.
3. High-Speed Detection Capacity
Depending on the model, it can achieve a detection speed of up to 100,000 capsules/hour, compatible with high-speed capsule filling machines.
4. Automatic Rejection System
Identifies and automatically rejects capsules of substandard weight.
Rejection is accurate and reliable, avoiding false rejections or missed rejections.
5. GMP Pharmaceutical-Grade Structural Design
The entire machine is constructed of 304/316 stainless steel, meeting the cleanliness requirements of the pharmaceutical industry. The modular structure facilitates disassembly and cleaning, preventing powder residue.
6. Multi-size capsule compatible
Supports hard capsules of various sizes, including 000#, 00#, 0#, 1#, 2#, 3#, 4#, and 5#, as well as soft capsules, transparent capsules, and other types.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
