■ Product Overview

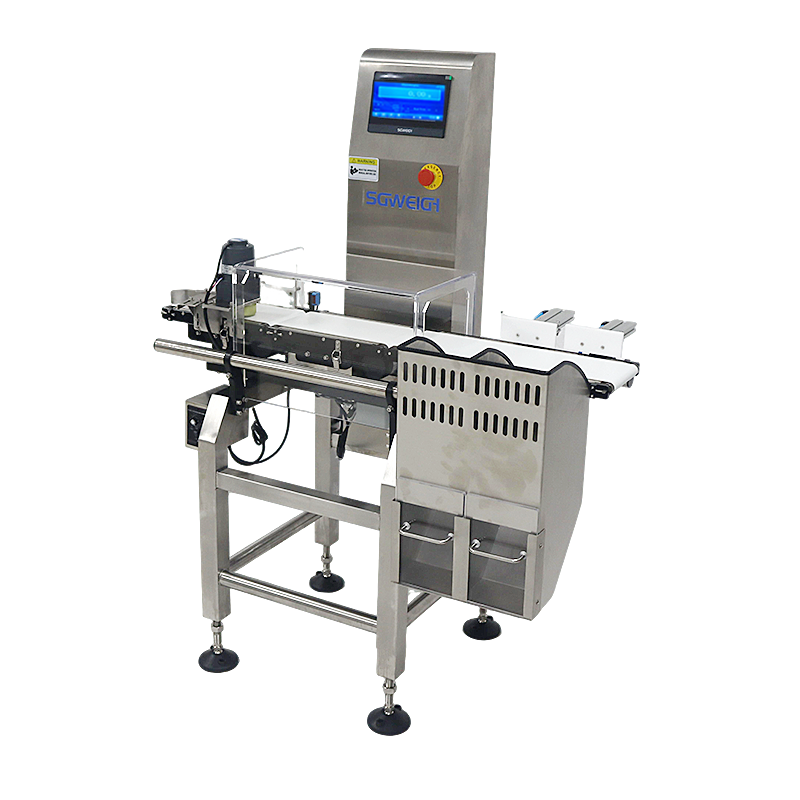

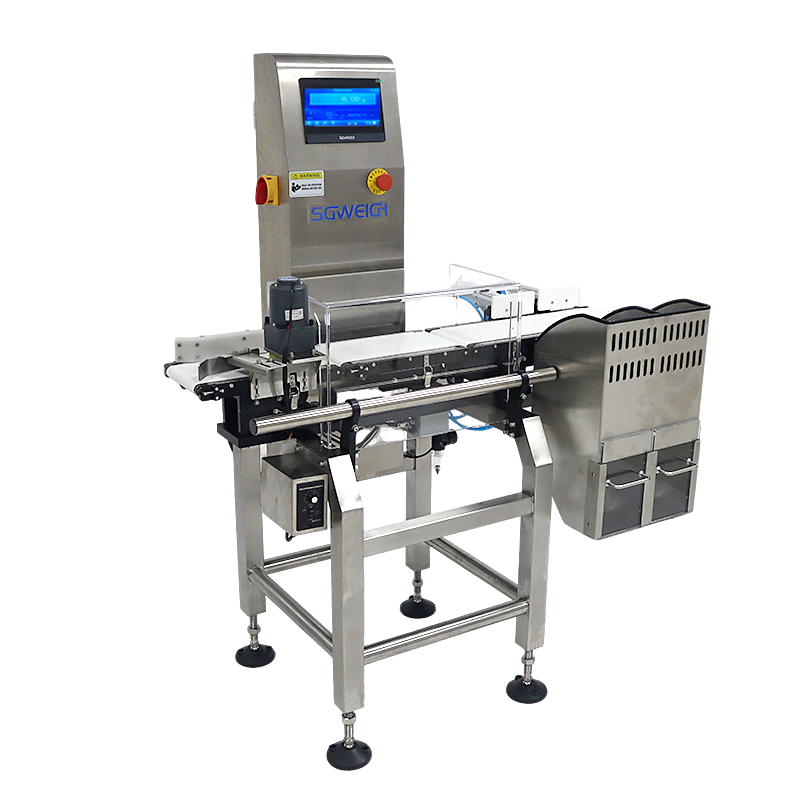

The Dual Rejection Dynamic Checkweigher is a high-precision weight inspection system designed for production lines requiring separate rejection handling for different weight deviations. Equipped with a dual reject mechanism, this Online Checkweigher efficiently removes both underweight and overweight products into independent collection bins, ensuring accurate classification and preventing product mix-up.
■ Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
Weight:About120KG
Windshield:8mm Thick acrylic (to avoid airflow interference)
Feet M20 stainless steel with shock-absorbing rubber pad
External air source:0.2-0.6Mpa Air pressure port:Φ8mm
■ Main Features
1.Dual rejection system for separate handling of underweight and overweight products.
2.High-speed, high-accuracy weighing performance.
3.Robust stainless steel construction compliant with GMP standards.
4.Modular conveyor design for easy cleaning and maintenance.
5.7” or 10” touch screen interface with data storage and USB export.
6.Optional communication ports for production line integration
7.Customizable reject types: air jet, flipper, pusher, or drop gate.
■ Application
Widely used in the food, pharmaceutical, daily chemical, and healthcare industries for automatic weight inspection, packaging quality control, and product compliance verification.
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
