|| Product Introduction

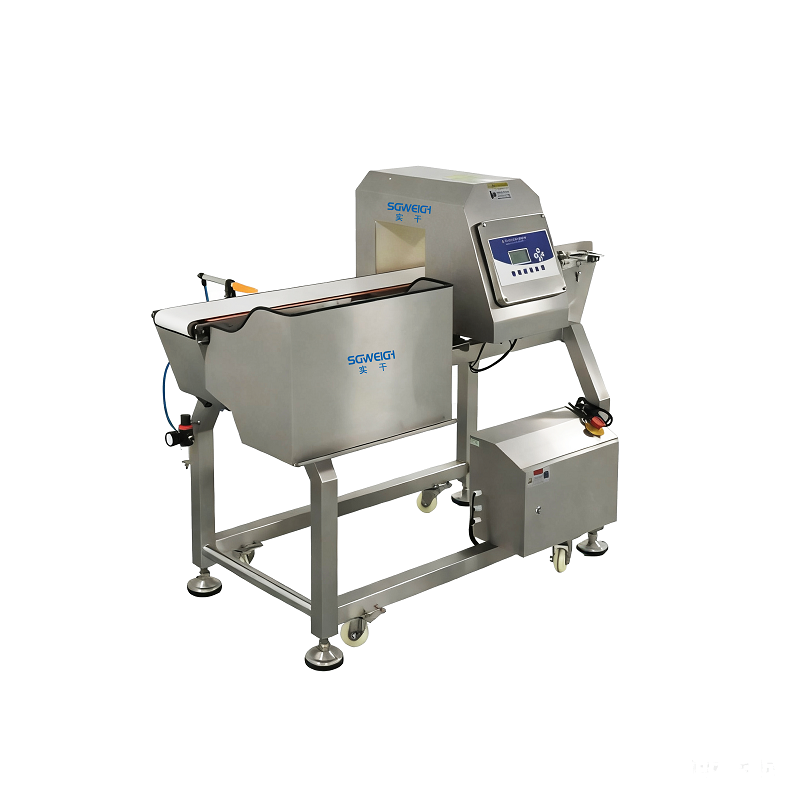

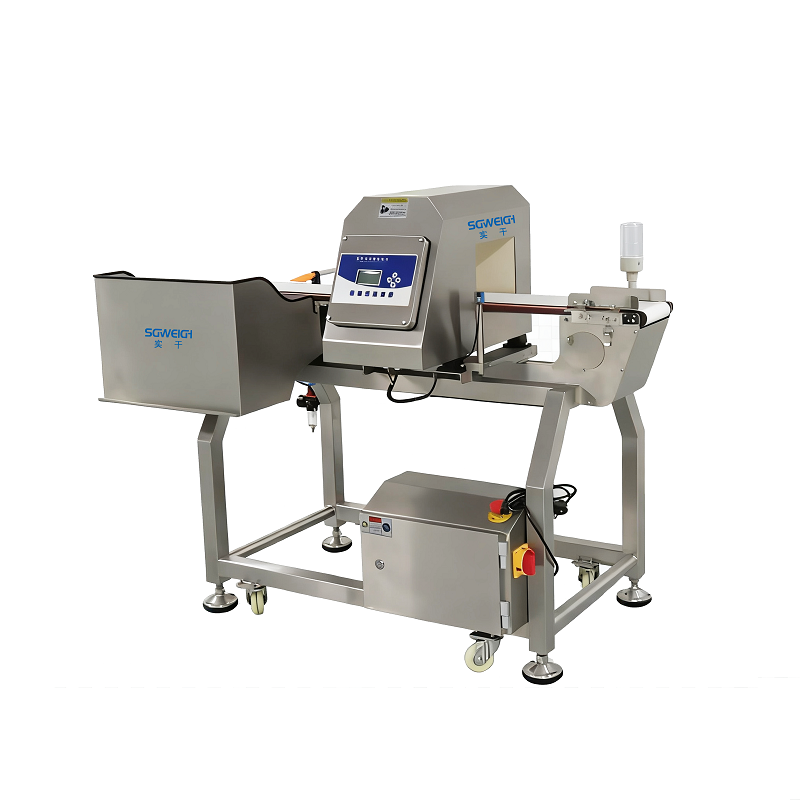

The High-Performance Food Metal Detector is designed to ensure maximum product safety and quality control in food processing and packaging lines.With advanced detection technology and a durable stainless-steel structure, this system delivers reliable performance even in demanding production environments.
|| Tech Specifications
Type:SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED fast key input/Touchscreen
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
|| Main Features
1.High Sensitivity Detection: Accurately detects ferrous, non-ferrous, and stainless-steel contaminants, including very small metal particles.
2.Digital Signal Processing (DSP): Utilizes advanced algorithms to enhance detection accuracy and reduce false rejects.
3.Multi-frequency Operation: Automatically adjusts frequency settings for optimal detection across different food types—whether dry, wet, or conductive.
4.User-friendly Interface: 7-inch touch screen display with multi-language support for simple operation and parameter setting.
5.Automatic Rejection System: Equipped with flap, air blast, or push-arm reject mechanisms for precise removal of contaminated products.
6.Data Recording & Traceability: Built-in data log for inspection records, supporting USB export for quality audits.
|| Application
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
