■ Product Brief

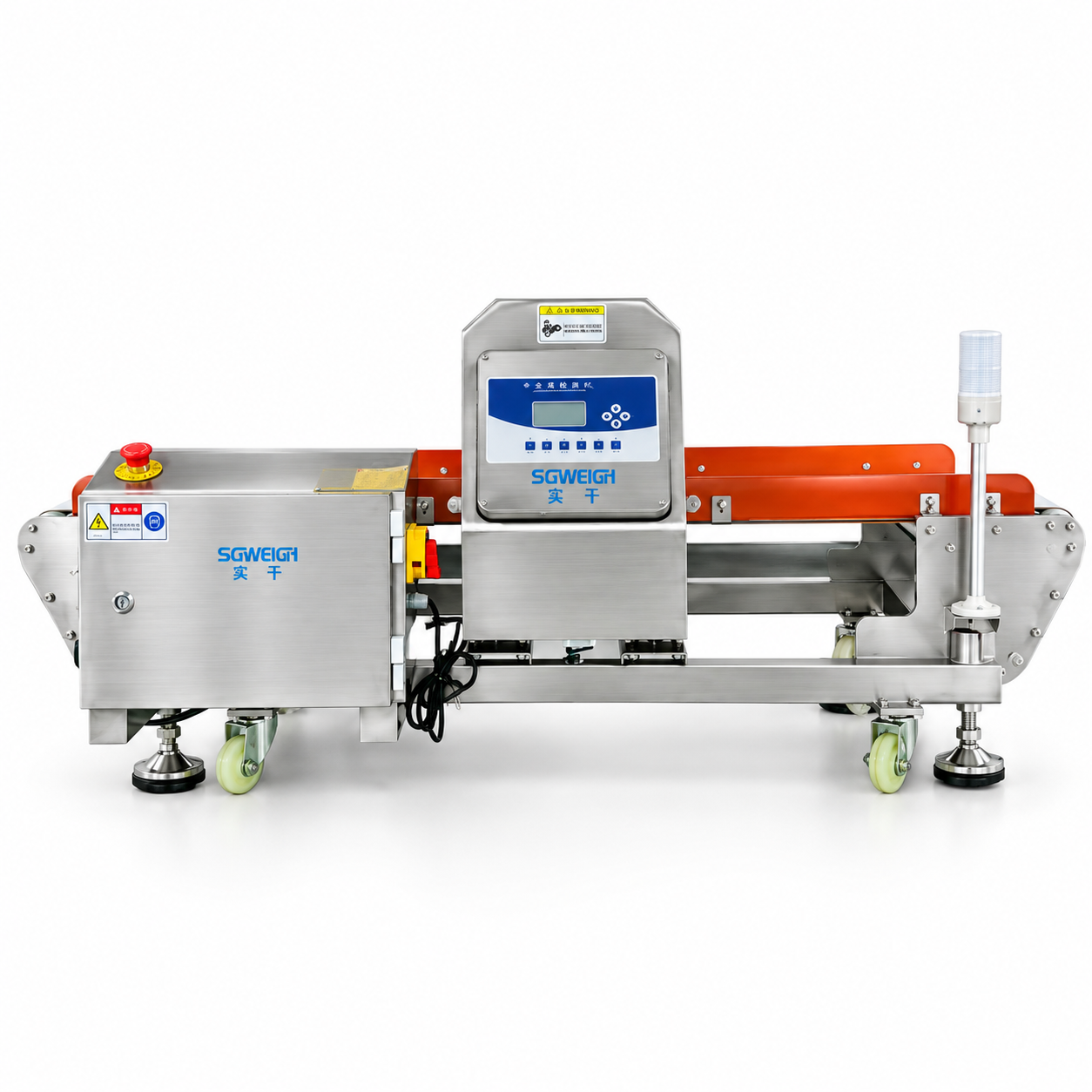

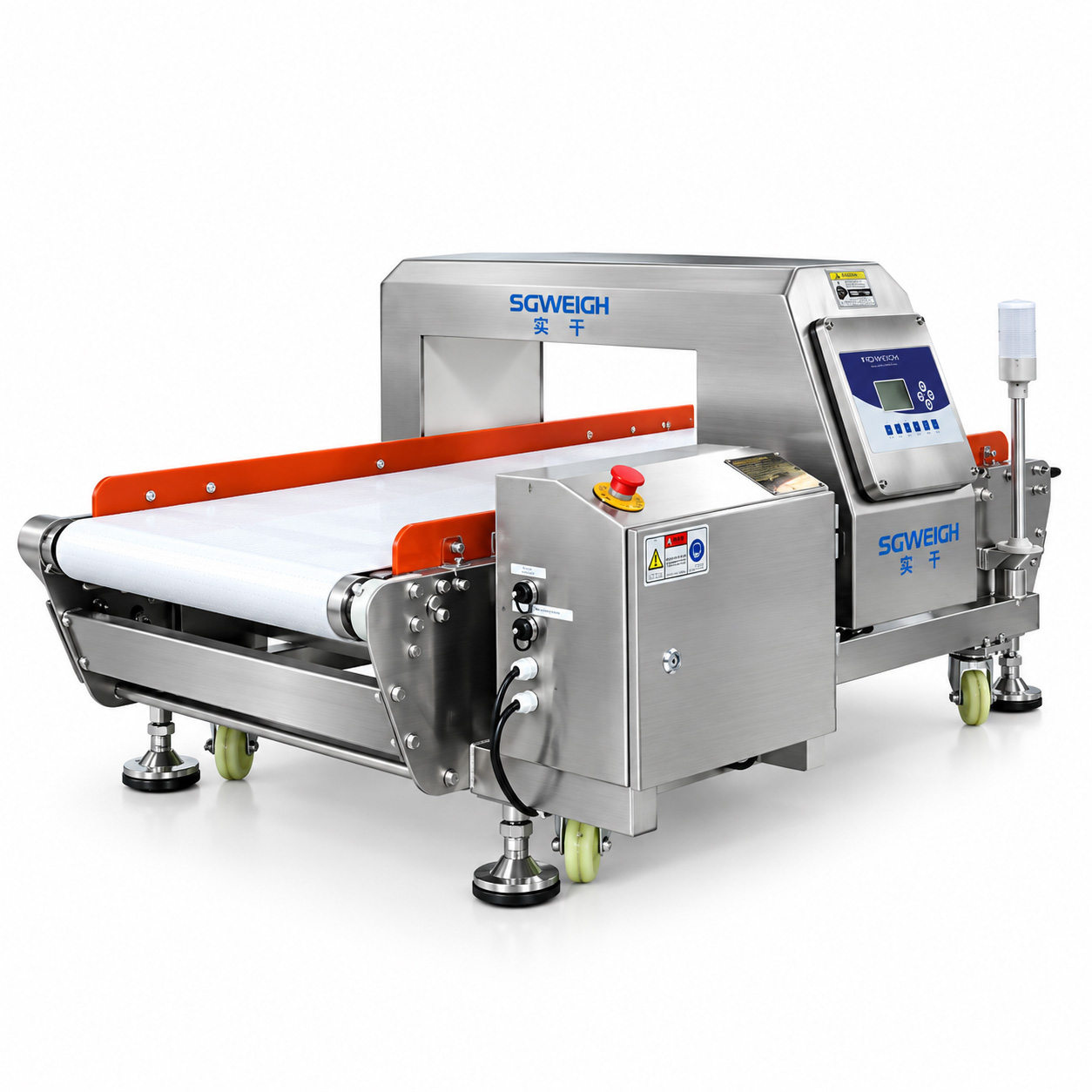

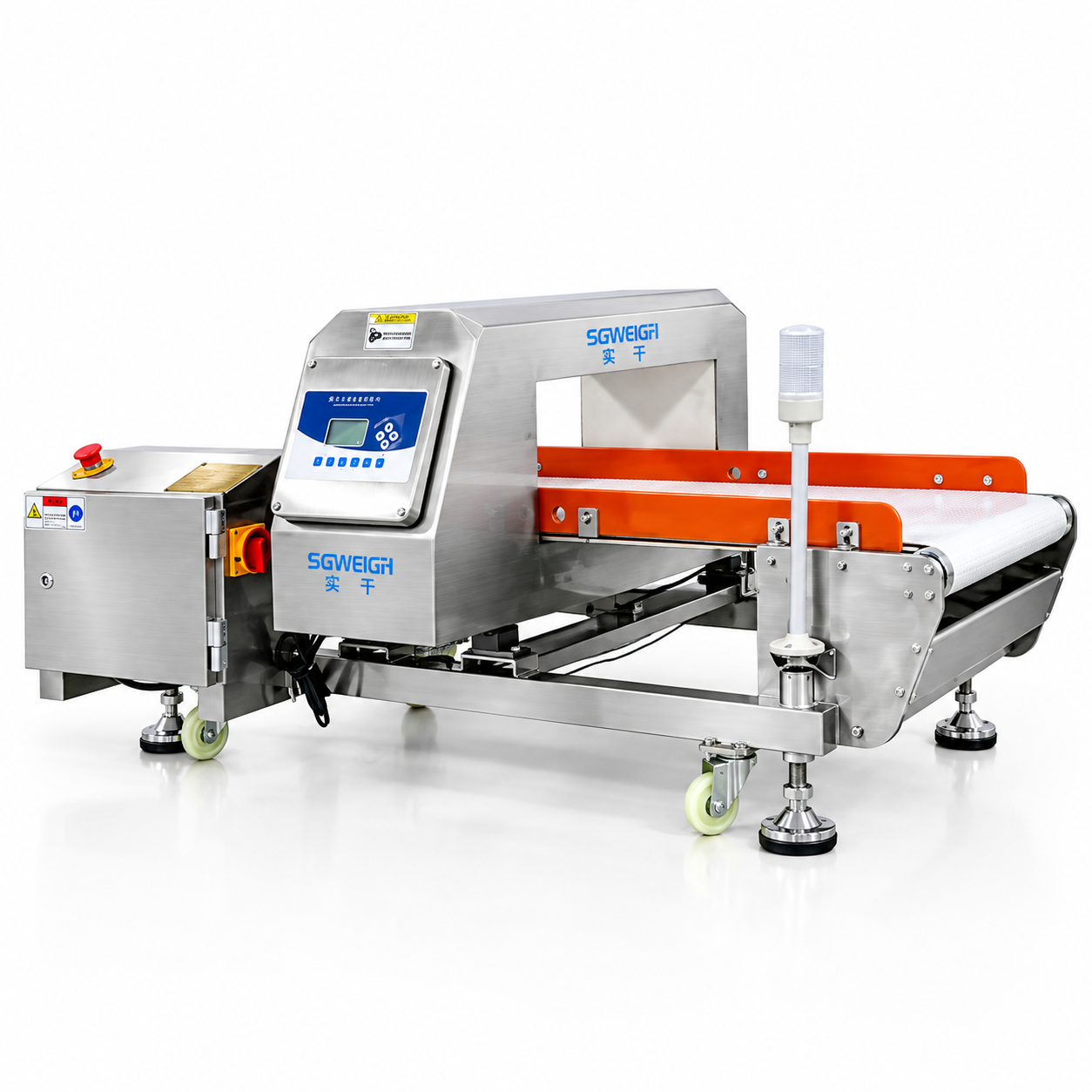

The Conveyor Metal Detection Machine is an inline industrial inspection system designed to detect metal contaminants in products transported on a conveyor belt. It can identify ferrous metals, non-ferrous metals, and stainless steel, helping manufacturers improve product quality, reduce contamination risks, and maintain consistent inspection throughout the production process.
With a high-sensitivity metal detection system, stable conveyor operation, and automatic reject options, the machine can be integrated into food, pharmaceutical, nutraceutical, chemical, and general manufacturing production lines. It is suitable for continuous online inspection of packaged and unpackaged products.
The Inline Metal Detector can also be configured with different reject mechanisms, conveyor sizes, detection apertures, belt speeds, and product settings according to specific production requirements.
■ Technical Data
| Type | SG-M600 |
| Machine Grade | Food Grade |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm (accept custom） |
| Detecting height | 80-500mm (accept custom） |
| Detecting sensitivity | Fe 0.8mm, Non-Fe1.5mm, SUS 1.5mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Protection class | IP65 |
| Conveyor belt material | food grade PU belt |
| Power | 200W |
| Power supply | AC220V,50/60Hz (Or Customized) |

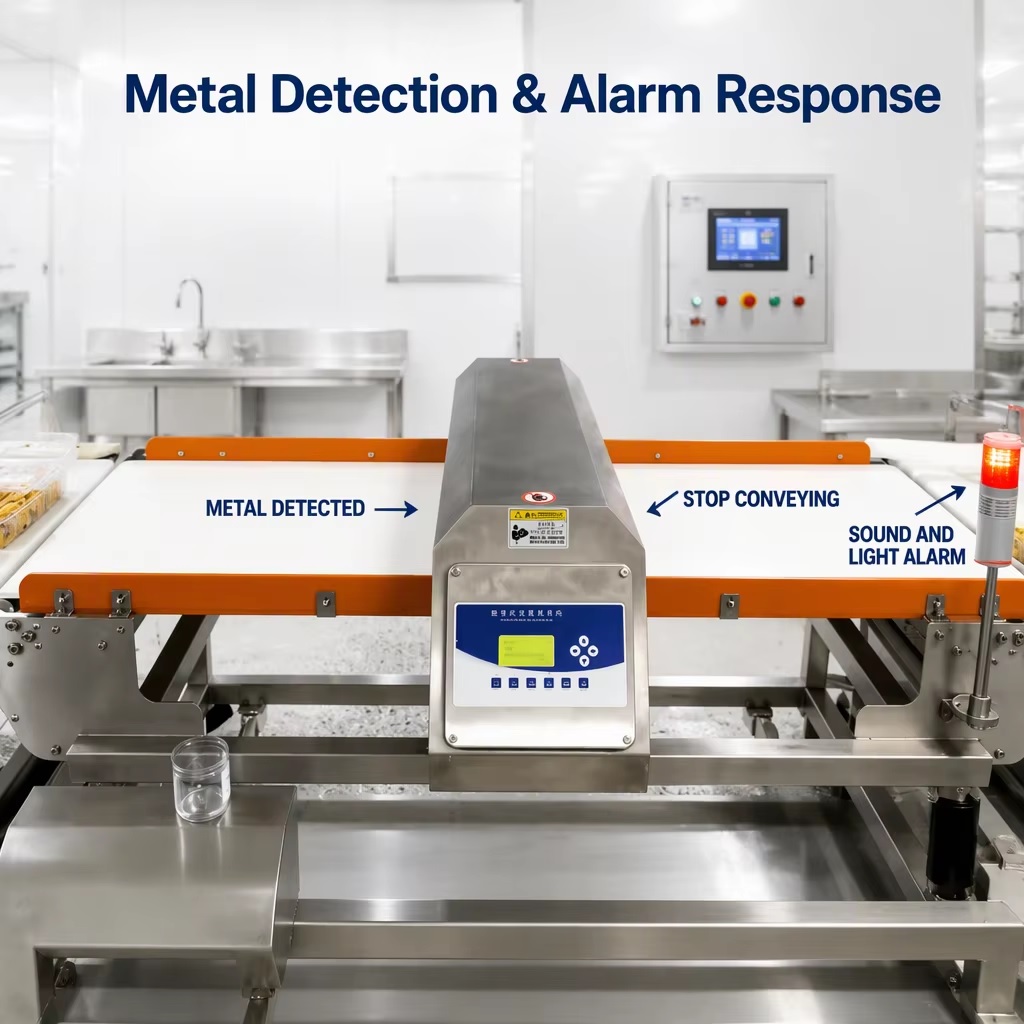

| Alarm mode | The buzzer alarm, the motor automatically stop |
■ Product Highlights
1. High-Sensitivity Metal Detection Detects ferrous, non-ferrous, and stainless-steel contaminants.

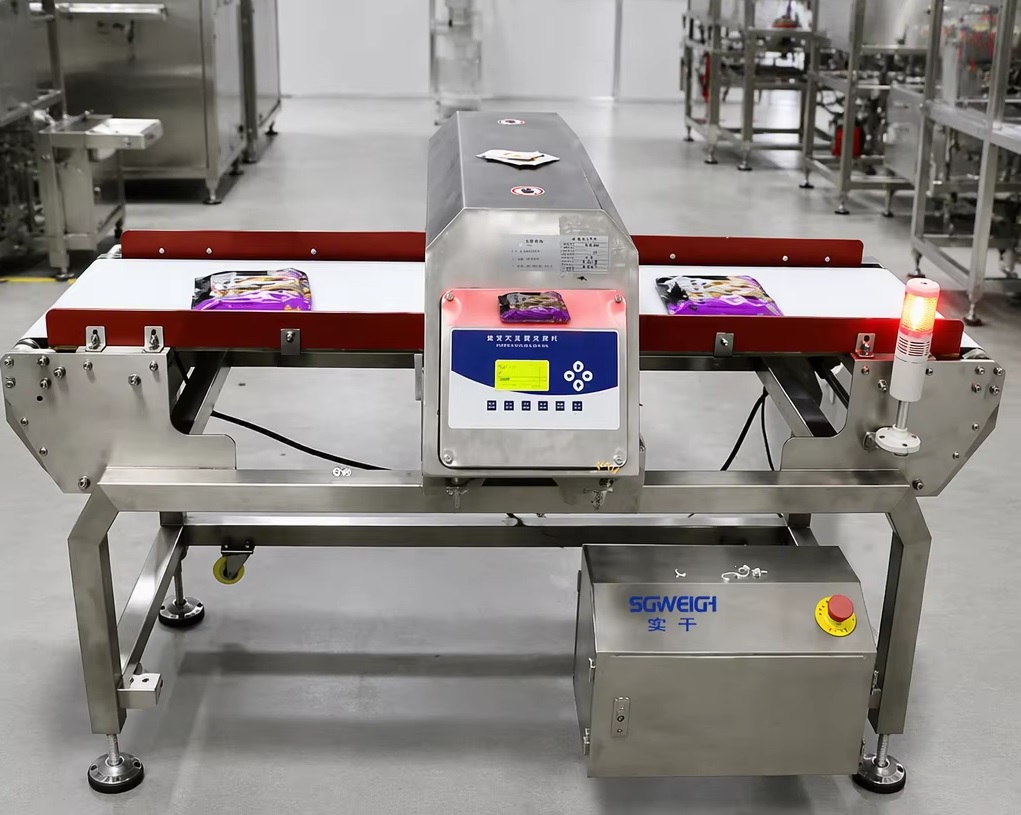

2. Continuous Inline Inspection Automatically inspects products while they pass through the conveyor.
3. Automatic Product Rejection Removes contaminated products using suitable reject mechanisms such as flap, air blast, or pusher systems.
4. Adjustable Conveyor Speed Supports different production speeds and product handling requirements.
5. Multiple Product Settings Allows parameters to be configured for different products and production conditions.

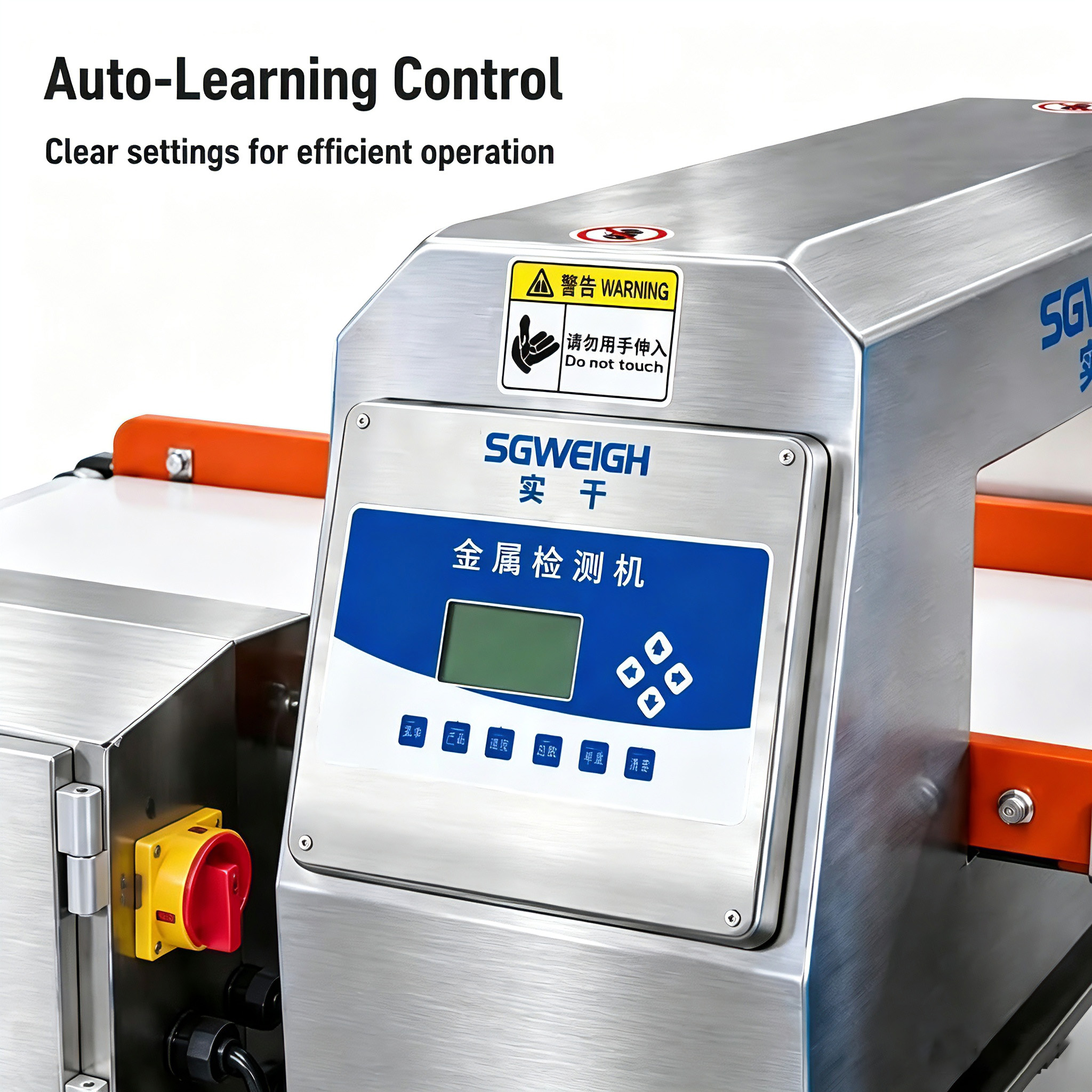

6. HMI Touchscreen Control Provides convenient operation, parameter adjustment, inspection monitoring, and production statistics.

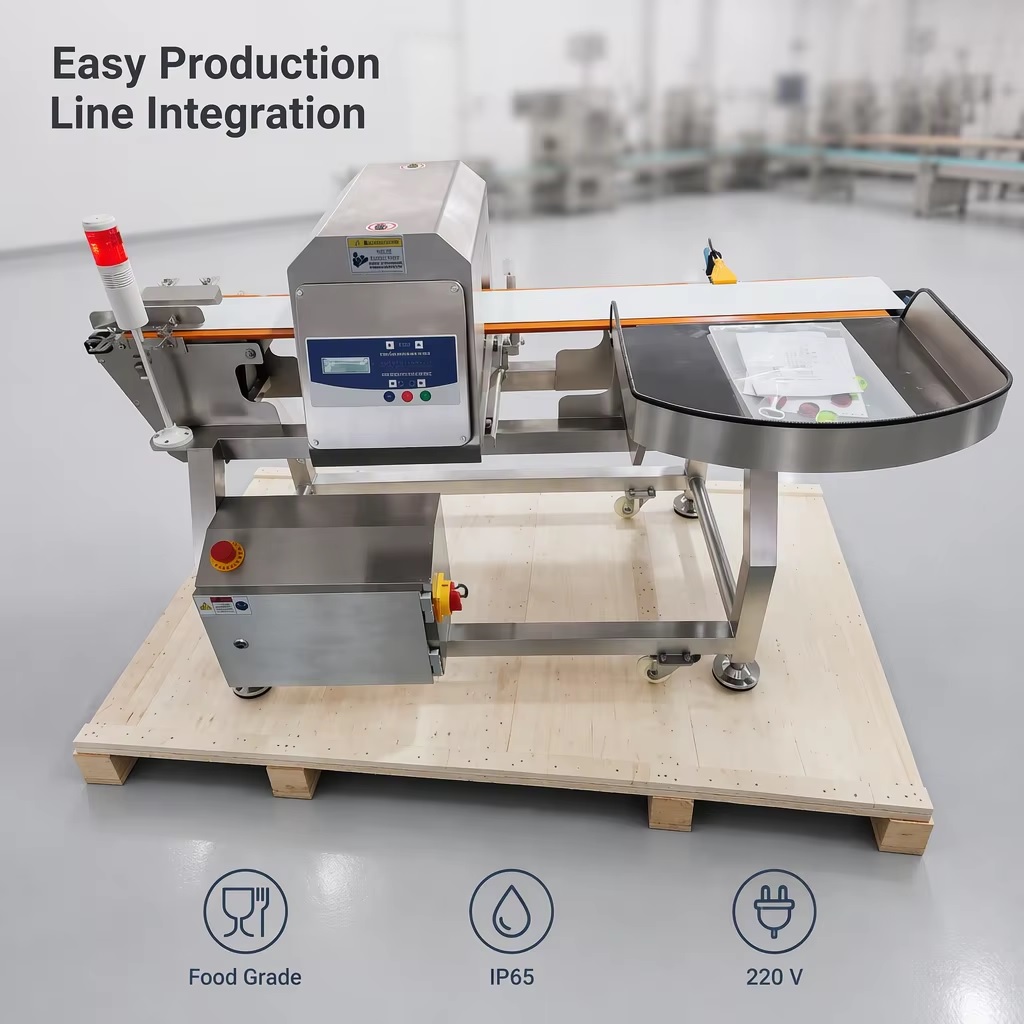

7. Production Line Integration Can be connected with packaging machines, checkweighers, filling machines, conveyors, and other inspection equipment.

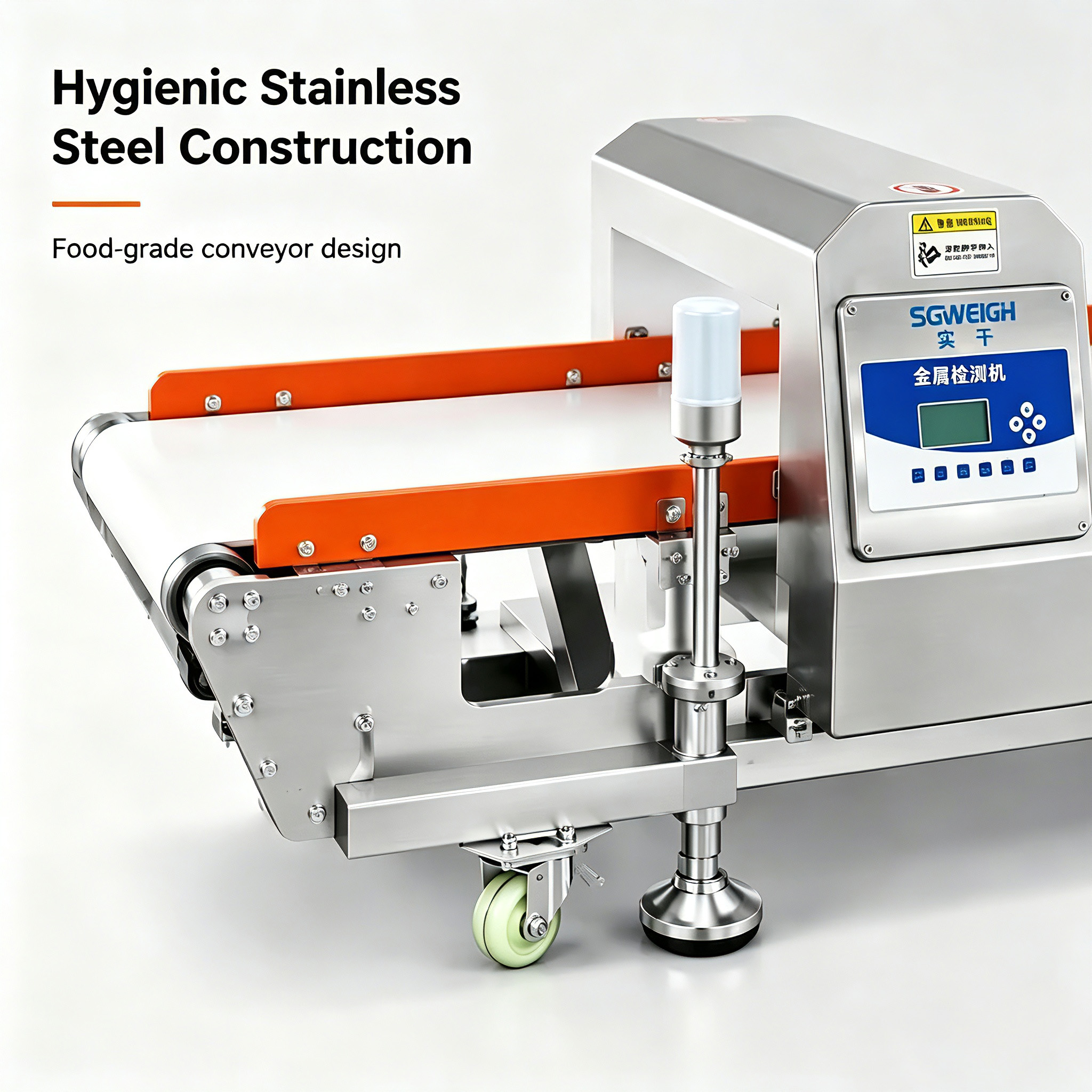

8. Stainless Steel Construction Suitable for demanding industrial production environments and routine cleaning.
■ Industry Applications
The Conveyor Metal Detection Machine can be used for:
- Packaged food inspection
- Bakery and confectionery products
- Snacks and frozen food
- Meat and processed food
- Pharmaceutical products
- Tablets and capsules
- Nutraceuticals and supplements
- Chemical products
- General industrial products
- End-of-line product inspection
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics

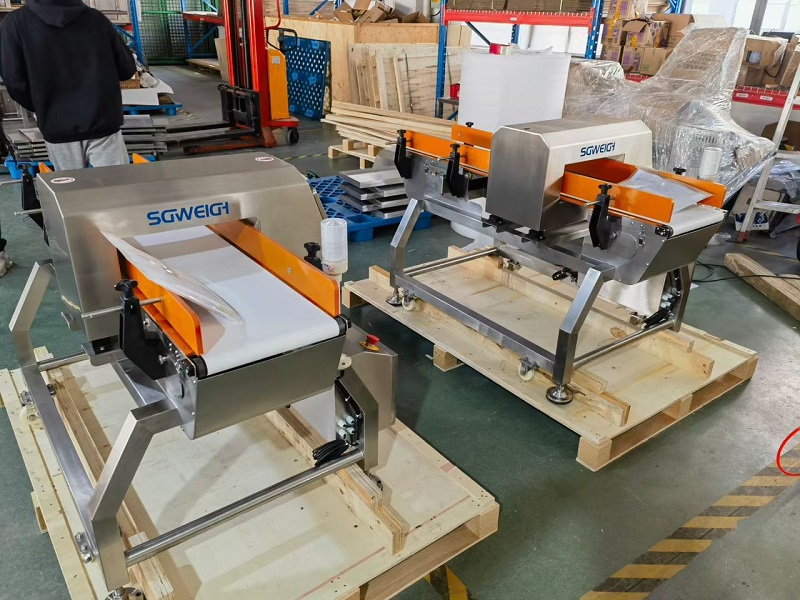

Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
