■ Product Brief

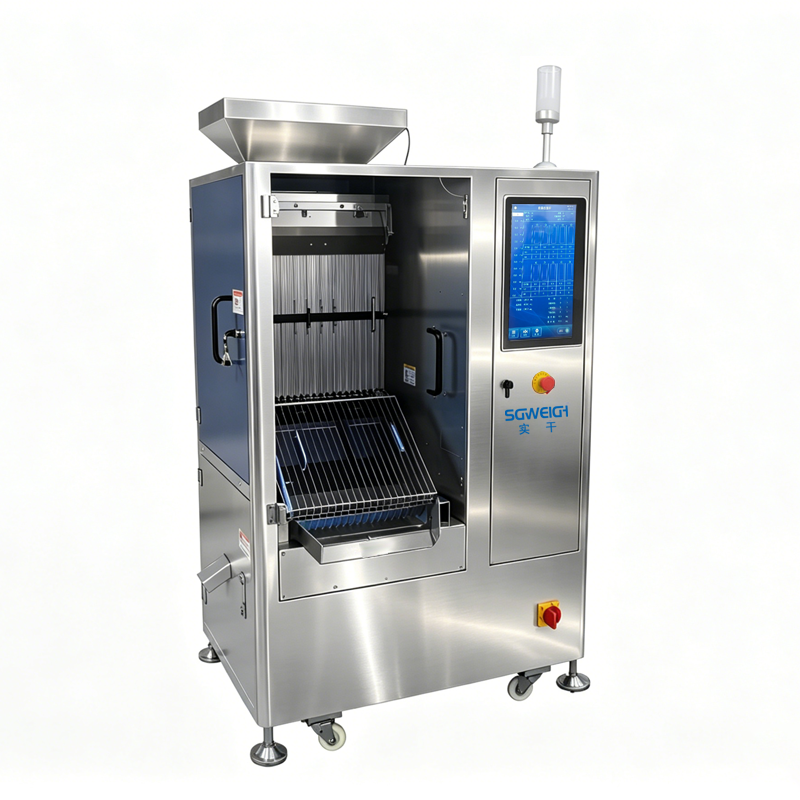

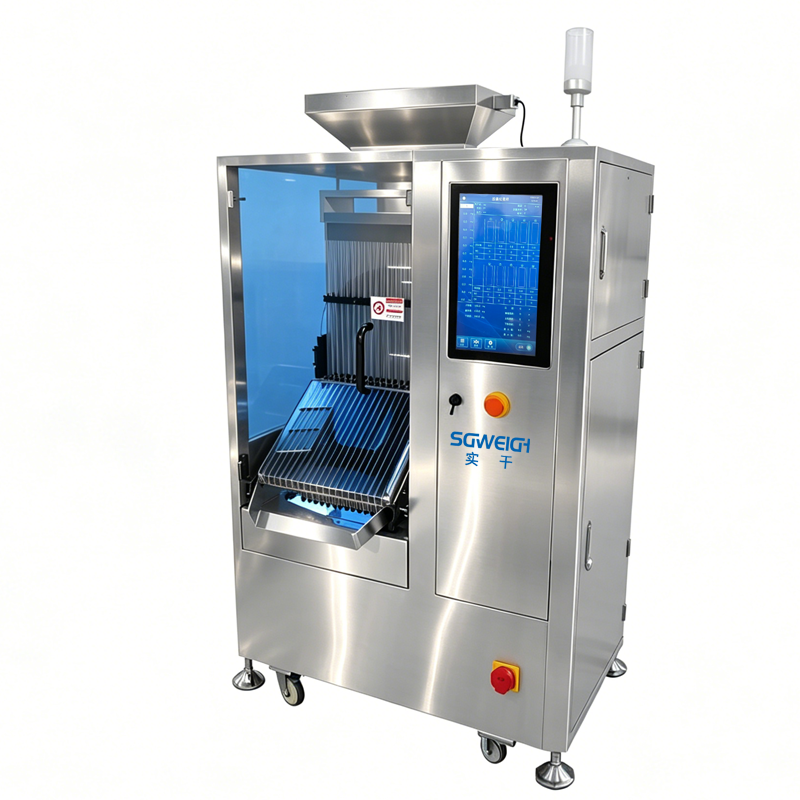

This advanced 20-Lane Capsule Checkweigher automatically detects underweight, overweight, and empty capsules during high-speed production. By providing real-time weight monitoring and automatic rejection, it helps manufacturers improve product quality, reduce material waste, and maintain strict dosage control.
By implementing a Capsule Checkweigher, manufacturers can achieve higher production efficiency, improve dosage accuracy, reduce product giveaway, and ensure compliance with strict pharmaceutical quality standards. The system provides reliable weight verification for every production batch, helping companies maintain product consistency and enhance brand reputation.
■ Technical Data
| Type | SG-C20 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 15 0,000 PCS/HR |
| Number of columns | 20 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30℃ The temperature change during use should not exceed the range of 1℃/h、Humidity 30~70% RH (but no condensation) |
| Shell material | SUS304/316 |
■ Product Highlights
1.Increased Production Efficiency
The 20-lane design allows multiple capsules to be inspected simultaneously, significantly increasing throughput compared with traditional single-lane systems.
2.Enhanced Product Quality
Continuous 100% weight inspection ensures consistent capsule fill weights and minimizes quality deviations.
3.Reduced Product Waste
Early detection of filling errors helps reduce material loss and production costs.
4.Regulatory Compliance
Supports pharmaceutical quality assurance requirements and helps manufacturers meet GMP and international regulatory standards.
5.Integration with capsule filling machines and production lines.
6.User-friendly touchscreen HMI for easy operation.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
