|| Product Introduction

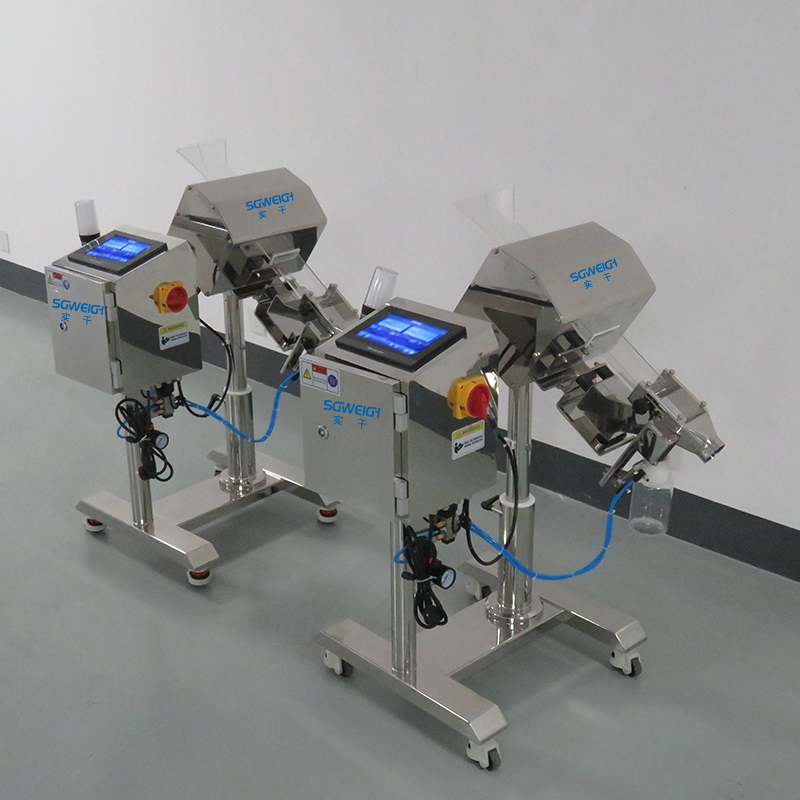

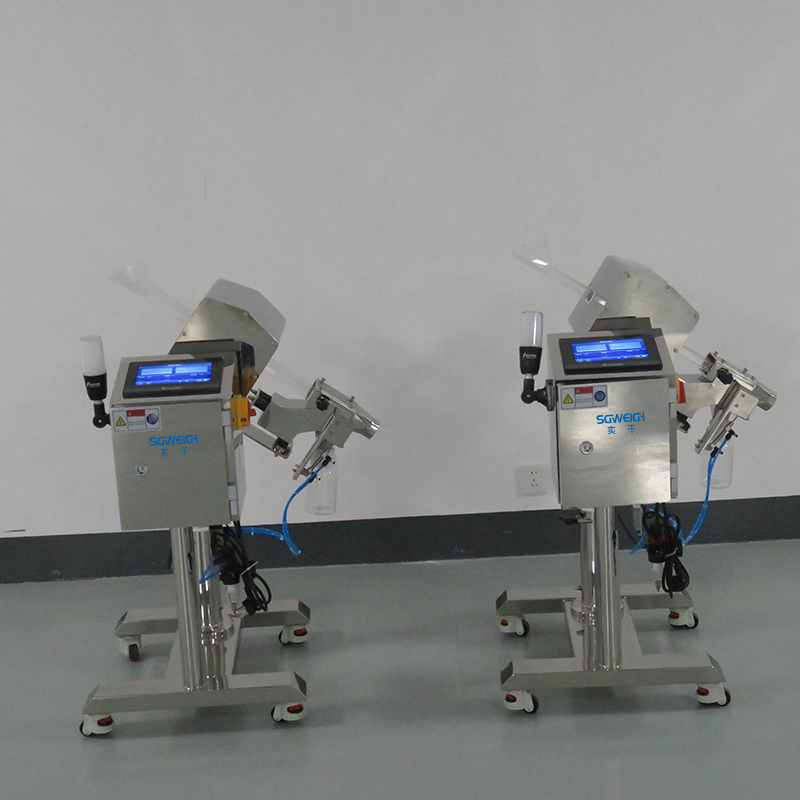

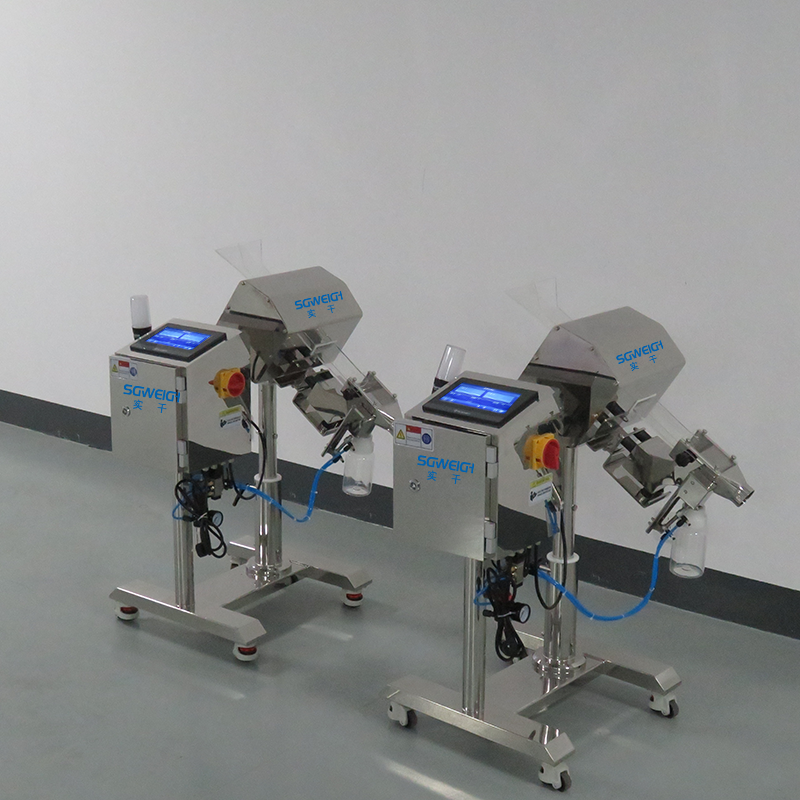

The Touchscreen Tablet Metal Detector is a high-precision testing device designed specifically for the pharmaceutical industry. It is used to detect whether tablets, capsules, granules, and other products contain metal foreign objects. The Metal Detector for Pharma and Health Products is equipped with an intelligent touchscreen operating interface, making it easy to operate and providing intuitive parameter settings. It is suitable for online detection and quality control in pharmaceutical production lines.
|| Tech Specifications
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, stainless steel: 0.5mm
Machine weight: 65kg
User interface: 7-inch touchscreen
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
|| Main Features
1. High-sensitivity detection: Utilizes an advanced probe system, achieving a detection accuracy of up to 0.3mm (Fe), effectively eliminating trace metal impurities.
2. Intelligent touchscreen control: Intuitive interface design, displaying detection status in real time, and easy setup.
3. Rapid automatic rejection system: Employs a pneumatic rejection mechanism to ensure automatic separation of non-conforming products, without affecting production continuity.
4. GMP standard design: The equipment is constructed of 304 stainless steel, with a dustproof and waterproof structure, easy to clean, and without dead corners.
|| Application
Tablet, capsule, and granule production lines
Testing of traditional Chinese medicine preparations and health products
Food and chemical granule testing applications
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
