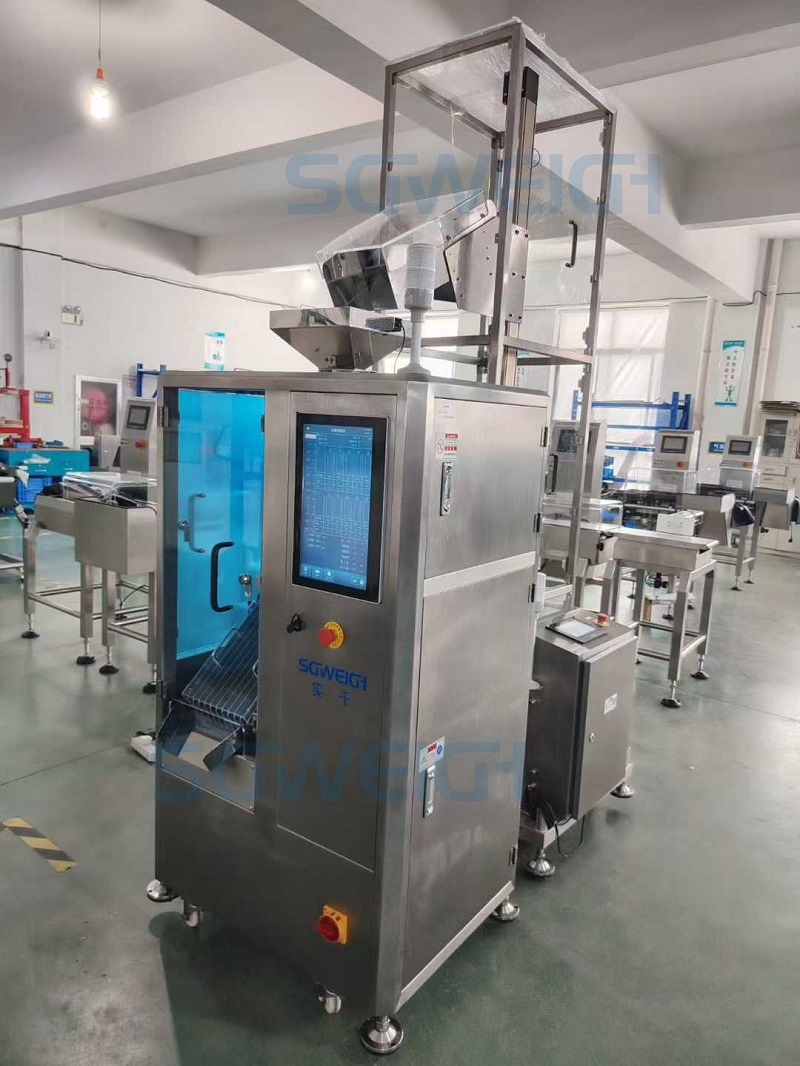

■ Product Overview
In the pharmaceutical industry,Capsule Checkweighers are core quality control equipment. Due to the lightweight and smooth shape of capsules (especially 00#-5# and slender capsules), the precision requirements for checkweighing are extremely stringent.
Multi-stage vibrating discs align the disordered capsules, ensuring that each capsule enters the weighing unit one by one at a uniform speed.
Physical isolation is used to ensure that only one capsule is on the weighing platform at a time.
■ Tech Specifications
Max throughput (10 lanes)100000 capsules/h
Max throughput (20 lanes)200,000 capsules/h
Max throughput (30 lanes)300,000 capsules/h
Weigh range:2-2000 mg
Highest sorting accuracy:±0.5mg
Scale interval:0.1 mg
Product size : Capsule No. 000 to 5.
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
■ Main Features
1. High-Precision Single-Capsule Weighing
The capsule checkweigher can dynamically weigh individual capsules, effectively identifying products with abnormal weights and ensuring consistent weight for each capsule.
2. Ultra-High Sensitivity Weighing System
Utilizing a high-sensitivity weighing sensor, it is suitable for detecting minute weight differences, meeting the requirements of high-precision quality control.
3. High-Speed Continuous Detection Capacity
The equipment supports continuous operation, achieving high processing speed while maintaining high detection accuracy, making it suitable for online use in automated production lines.
4. Automatic Rejection of Defective Products: Capsules that fail the weighing test are automatically separated or rejected, improving production efficiency.
5. Stable Conveying and Positioning Structure
A dedicated conveying and positioning design ensures stable capsule posture during weighing, avoiding errors caused by bouncing or tumbling.
6. Intelligent Control and Data Recording: Equipped with a touchscreen operating system, it can display weight data, pass rate, and anomaly statistics in real time, facilitating production management and quality traceability.
7. Compact Structure, Easy Cleaning and Maintenance
The overall structure is compact, and components are easy to disassemble and assemble, suitable for frequent model changes and daily cleaning, reducing maintenance costs.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
