◆ Product Overview

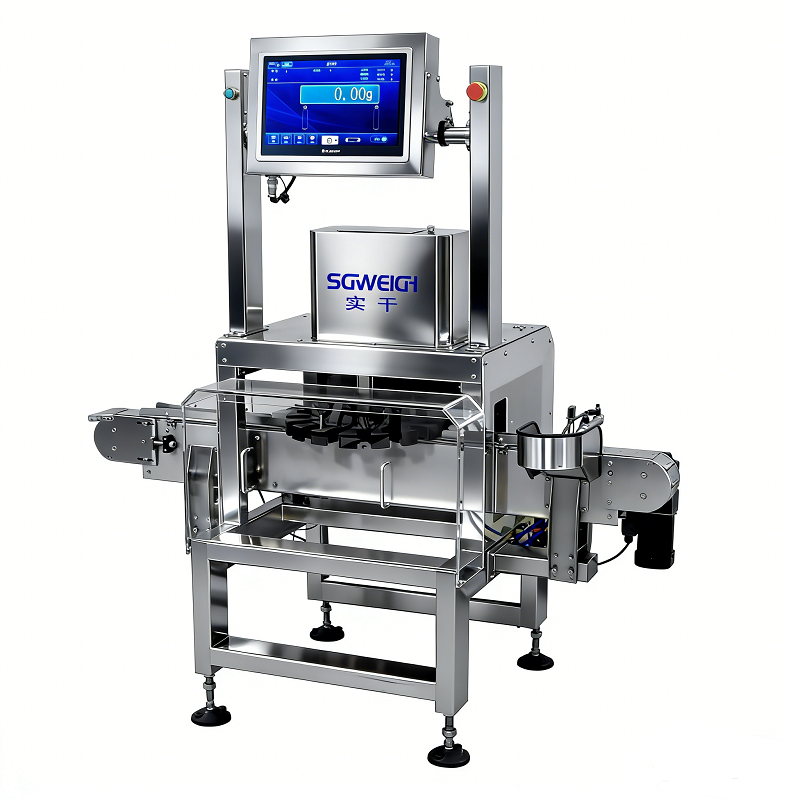

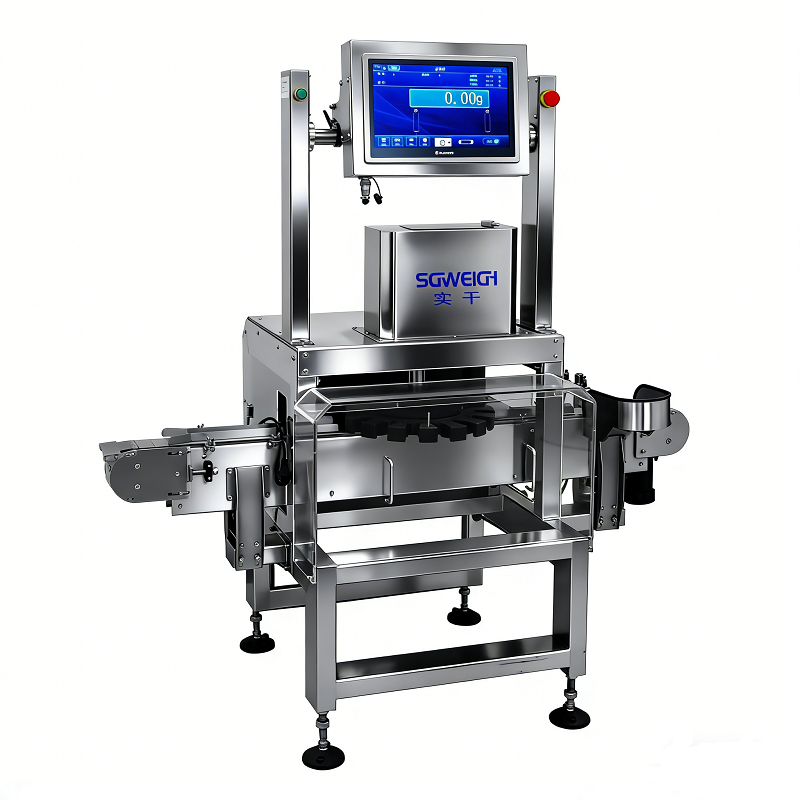

A High-Speed Rotary Check Weigher System is an automated device specifically designed for online weight checking of bottled, canned, or round container products.Multi-Bottle Rotary Checkweigher uses a rotating turntable to transport products, completing accurate weighing at high speed and automatically rejecting products that do not meet the weight requirements.
For manufacturing companies that need to handle various bottle types, a customized rotary bottle checkweigher is an efficient and reliable solution.
◆ Tech Specifications
| Model | SG-Z2 (dual channel) |
| Weighing range | 2-300g |
| Minimum scale | 0.01g |
| Sorting accuracy | ±0.02 grams (depending on the product) |
| Sorting speed | 60pcs/min- (single channel)
120pcs/min- (two channel) 180pcs/min- (three channel) (Optional) |
| Conveying speed | 0-50m/min |
| Operation mode | touch operation |
| Conveying direction | Facing the touch screen from left to right |
| Rejection method | air blowing removal/push plate removal |
| Belt height from the ground | 750±50mm (can be customized according to customer requirements) |
| Machine structure | stainless steel (SUS304/316) |
| Power supply | 220V 50-60HZ |
◆ Main Features
1. High-Stability Weighing
The turntable structure effectively secures the bottle, reducing product movement and improving inspection accuracy.
2. Suitable for Round Containers
Especially suitable for round packaging products such as bottles and cans.
3. High-Speed Online Inspection
Meets the continuous inspection needs of high-speed production lines.
4. Interchangeable Mold Design
Different sizes of bottles can be quickly adapted by changing the mold.
5. Automatic Rejection System
Defective products are automatically rejected by air blowing, push rods, or diversion devices.
◆ Application
◆ Customers
◆ Exhibitions
◆ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
