■ Product Brief
The High Speed Pharmaceutical Bottle Checkweigher is an automatic inline weighing system designed to inspect the weight of bottles during pharmaceutical, nutraceutical, cosmetic, and healthcare product manufacturing. It supports a wide range of bottle types, including plastic bottles, glass bottles, medicine bottles, tablet bottles, capsule bottles, liquid medicine bottles, and other rigid containers, subject to the machine configuration.

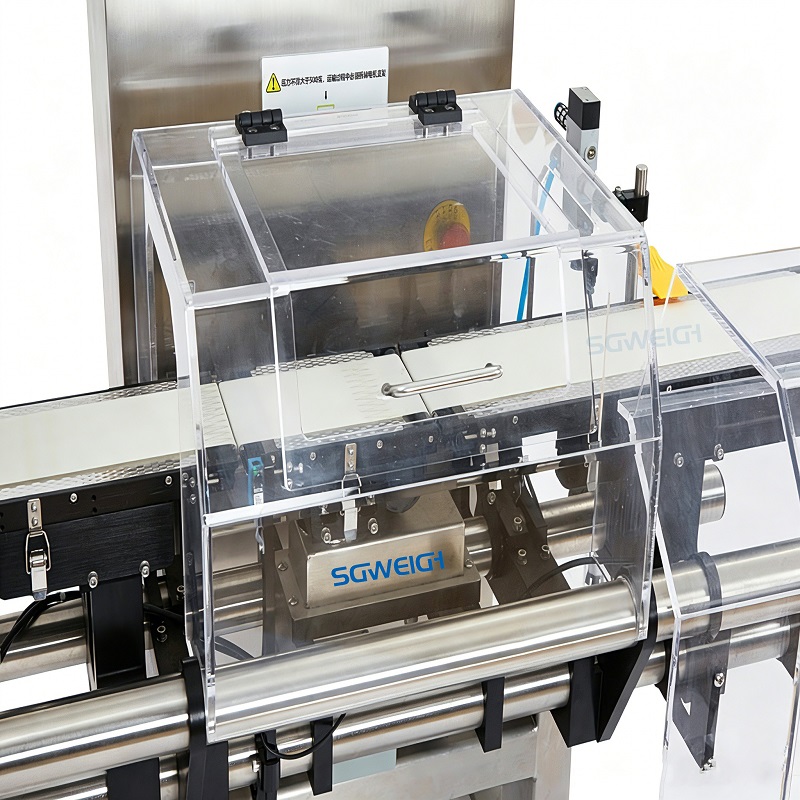

Using dynamic weighing technology, the system measures the weight of each bottle as it moves along the conveyor belt without interrupting the production process. The measured weight is compared with a preset target weight and allowable tolerance to identify underweight and overweight products. When an out-of-tolerance bottle is detected, an optional automatic rejection system can remove it from the production line.

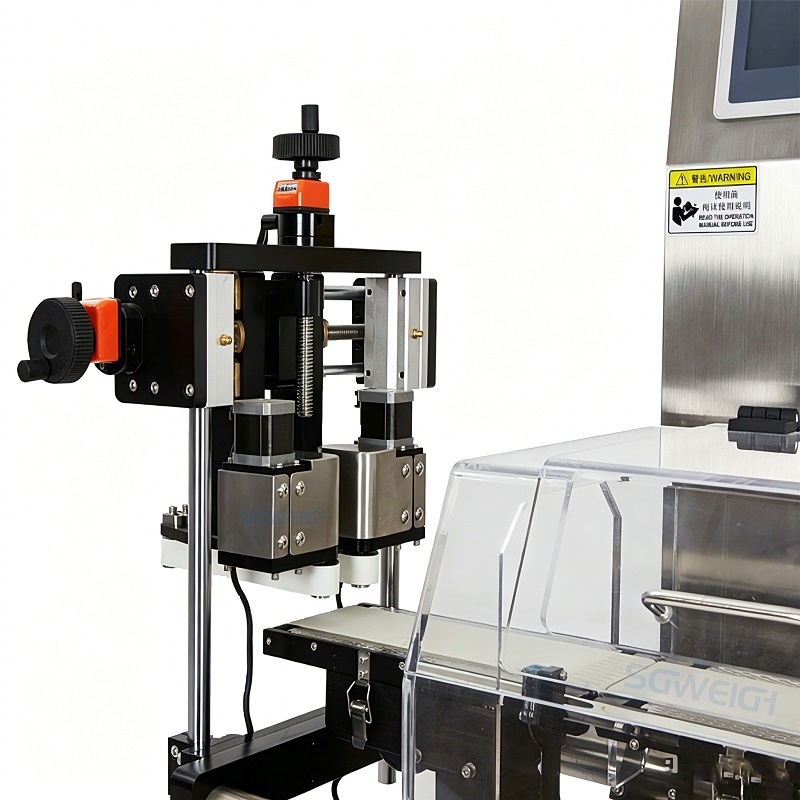

The Checkweigher can be configured for different bottle diameters, heights, shapes, and product weights. Customized conveyor guides, bottle handling mechanisms, and stabilizing devices help maintain smooth and consistent bottle movement during weighing. This is particularly important for lightweight plastic bottles, narrow medicine bottles, and containers that may wobble or shift on a conveyor.
■ Technical Data
| Type | SG-100HH |
| Weighing scope | 2-300g |
| estriction of product | L:100 W:100 H:2-150(mm) |
| Accuracy | ±0.05g(Depends on products) |
| Division scale | 0.01g |
| Highest speed | 450pcs/min(Depends on products) |
| Belt width | 100mm |
| Belt Speed | 0-120m/min |
| Power supply | AC220V±10%50HZ |
| Main material | SUS304/316 |
■ Product Highlights
1. High-Speed Dynamic Weighing
Weighs individual bottles while they move along the production line, supporting continuous online weight inspection without stopping the conveyor.
2. Compatibility with Different Bottle Types
Can be configured for round, square, oval, plastic, glass, and other compatible bottles. Adjustable guides and optional bottle-handling mechanisms accommodate different dimensions.
3. Underweight and Overweight Detection
Compares measured weight with preset target weight and upper and lower tolerance limits to identify non-conforming bottles.
4. Automatic Rejection System

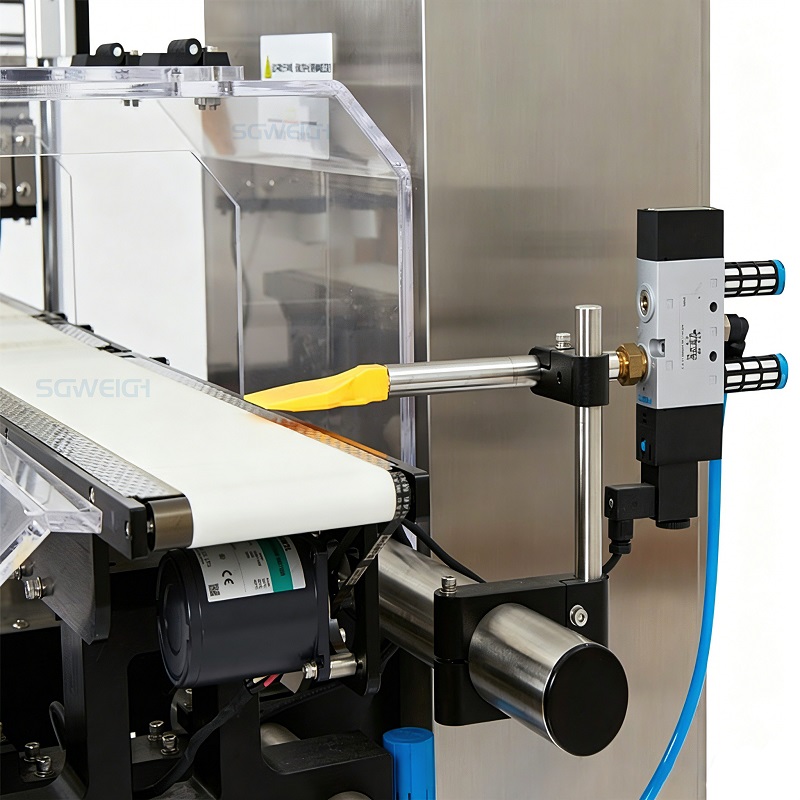

Optional pushers, air-blast devices, or other suitable rejection mechanisms separate bottles outside the specified weight range.
5. Production Line Integration
Can be integrated with bottle filling, tablet counting, capping, labeling, and packaging equipment according to the line configuration.
6. Weight Data and Production Monitoring
Optional production statistics, weight records, alarm functions, and data export support quality monitoring and process adjustment.
