■ Product Overview

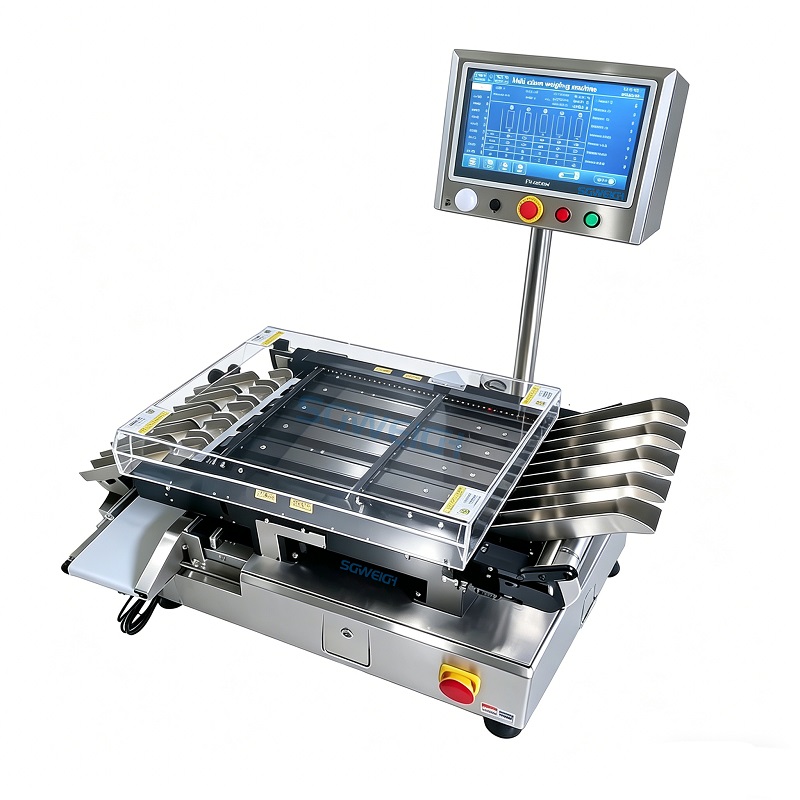

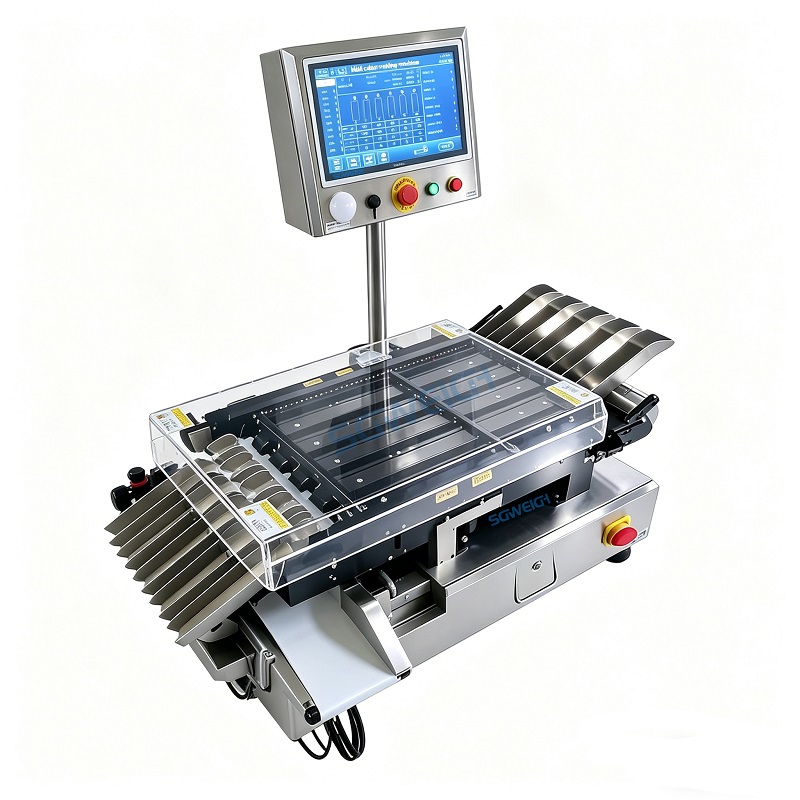

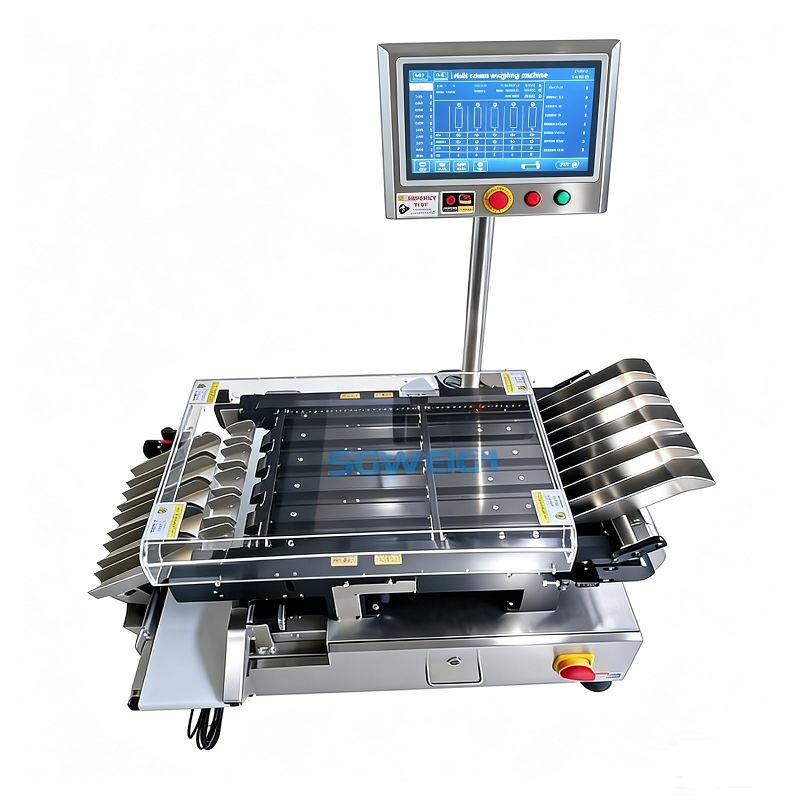

The 5-Lane Sticks Checkweigher is a high-precision online dynamic weighing device specifically designed for multi-lane stick-packaged products (such as powder sticks, coffee sticks, sugar sticks, and pharmaceutical tablet sticks). This device utilizes multi-channel synchronous detection technology to achieve independent weight detection and real-time data feedback for each row of products, significantly improving the quality control level of the production line.
This Multi-lane Checkweigher is typically integrated into the back end of an automatic packaging machine, employing a high-speed dynamic weighing algorithm and high-sensitivity weighing sensors to maintain stable accuracy even in high-speed production environments. It also features an automatic rejection mechanism for accurately sorting out defective products. Compared to single-channel devices, the 5-channel structure significantly improves detection efficiency, making it particularly suitable for high-volume, high-cycle stick packaging production lines.
■ Tech Specifications
| Model | SG-5X |
| Weighing range | 1-50g |
| Accuracy | 0.01g (Depends on products) |
| Weighing speed | The single-lane speed can reach up to 70 pcs/min (depending on the length of the product) |
| Restrictions of product | L:180 W:40 H:2-20(mm) |
| Operation way | Touch screen |
| Operation screen | 12 inch screen |
| Material | Stainless steel（SUS304） |
| Power supply | 220V 50-60HZ |
| Power | About 200W |
| Remark:The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard. | |
■ Main Features
1. Multi-channel synchronous weighing (5 independent detection columns).
2. High-precision dynamic weighing (suitable for lightweight packaging).
3. Automatic rejection of defective products (underweight/overweight).
4. Real-time weight monitoring and data statistics.
5. PLC touch screen operation, supports multiple recipe storage.
6. Compatible with high-speed packaging production lines.
7. Stainless steel structure, compliant with food/pharmaceutical standards.
■ Application
Food Industry: Coffee bars, candy bars, seasoning powders, meal replacement powders
Pharmaceutical Industry: Powdered tablets, granules, powders
Health Products: Vitamin powder bars, protein powder bars
Daily Chemical Industry: Laundry detergent bars, liquid strips
■ Company
■ Customers
■ Exhibitions

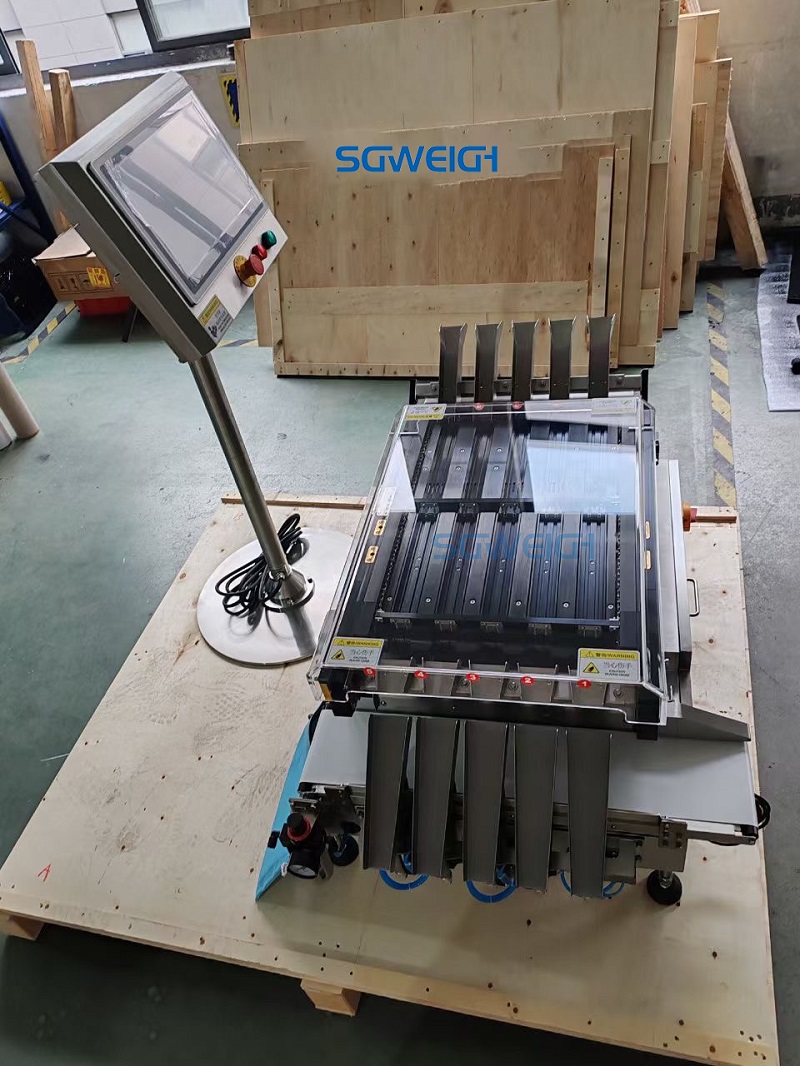

■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
