■ Product Overview

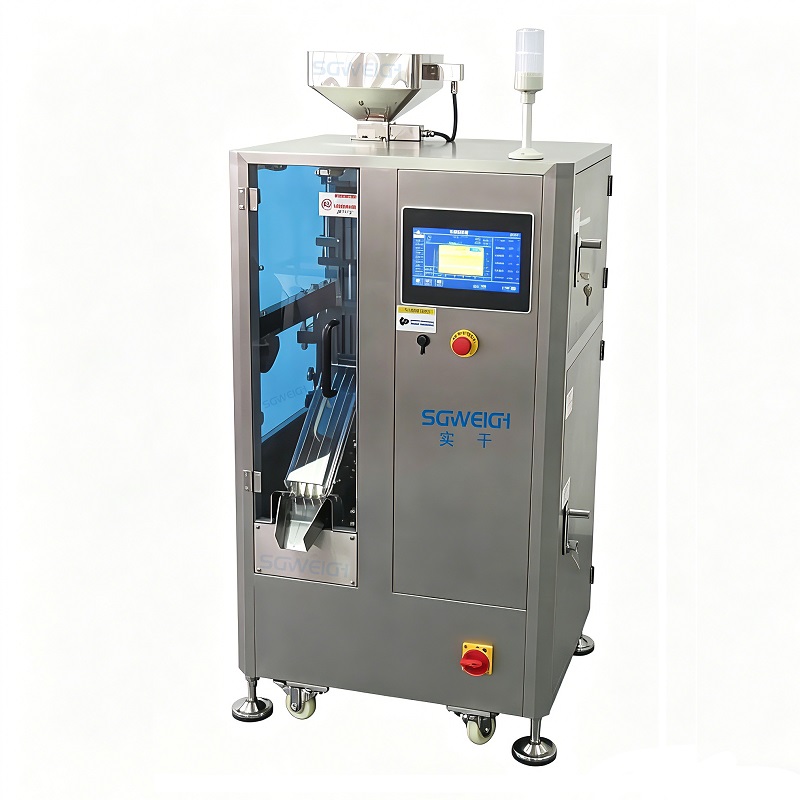

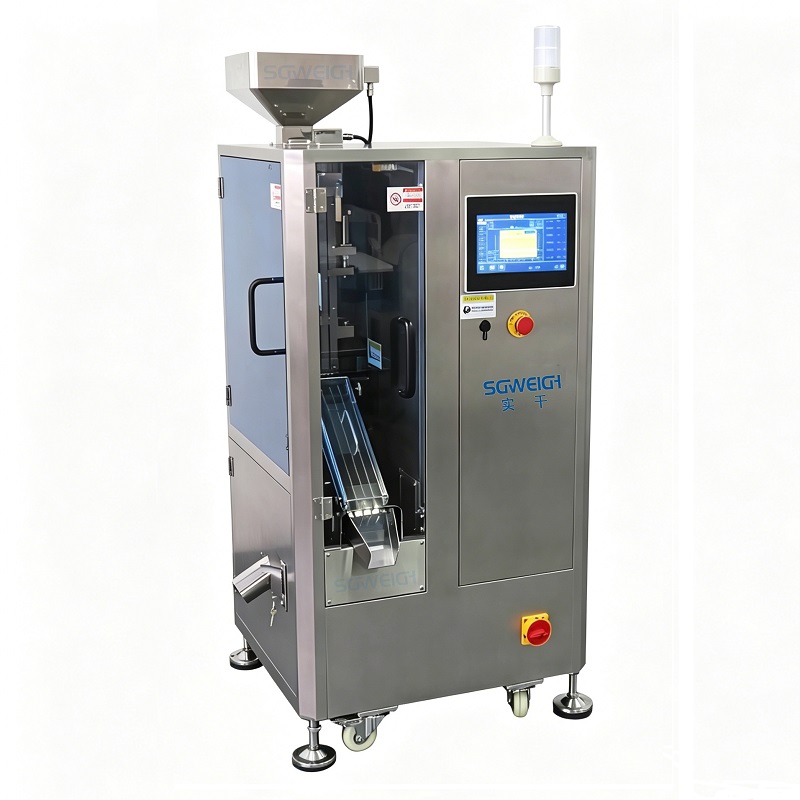

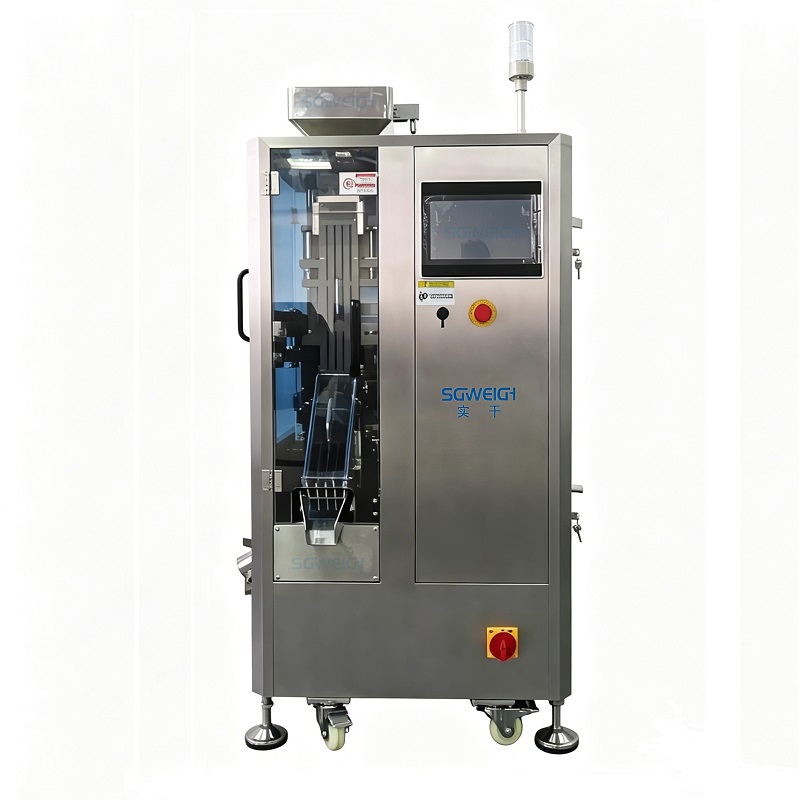

The 4-Lane Capsule Checkweigher is a multi-channel online checkweighing device designed specifically for high-precision industries such as pharmaceuticals. Through four independent parallel conveying channels, it achieves high-speed, high-precision, and 100% full inspection of capsules.Capsule Checkweigher’s core value lies in improving production line efficiency while strictly ensuring compliance with the filling volume difference of each capsule, and preventing the outflow of unqualified products such as insufficient material, excessive material, and empty shells.
■ Tech Specifications
| Type | SG-JN4 |
| Display scale | 0.1mg |
| Accuracy | ±0.5mg |
| Product specification | capsules such as 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#, SA, SB, and conventional tablets |
| Highest sorting ability | 40,000 PCS/HR |
| Number of columns | 4 Columns |
| Power supply | AC-220V±10%, 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation) |
| Shell material | SUS304/316 |
■ Main Features
1. High-Precision Weighing
Equipped with a high-precision weighing sensor, it accurately measures the weight of individual capsules, with an accuracy down to the milligram level.
2. Multi-Specification Weighing
The capsule weighing machine uses a mold-changing method to weigh capsules or tablets of different specifications individually after processing.
3. Access Control
The equipment’s interface operating system features a three-level access control system, allowing for different permissions to be set for different personnel.
4. Automated Operation
It can automatically complete the processes of capsule feeding, weighing, sorting, and rejecting defective products, reducing manual operation and improving production efficiency.
5. Rapid Detection
It has a fast detection speed, adaptable to high-efficiency production lines, ensuring that it does not affect the overall production process.
6. Sorting Function
Based on preset weight standards, the equipment can automatically separate defective capsules (overweight or underweight) from qualified products.
7. Data Recording and Traceability
It can record weighing data, facilitating product quality traceability and statistical analysis.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
