◆ Product Overview

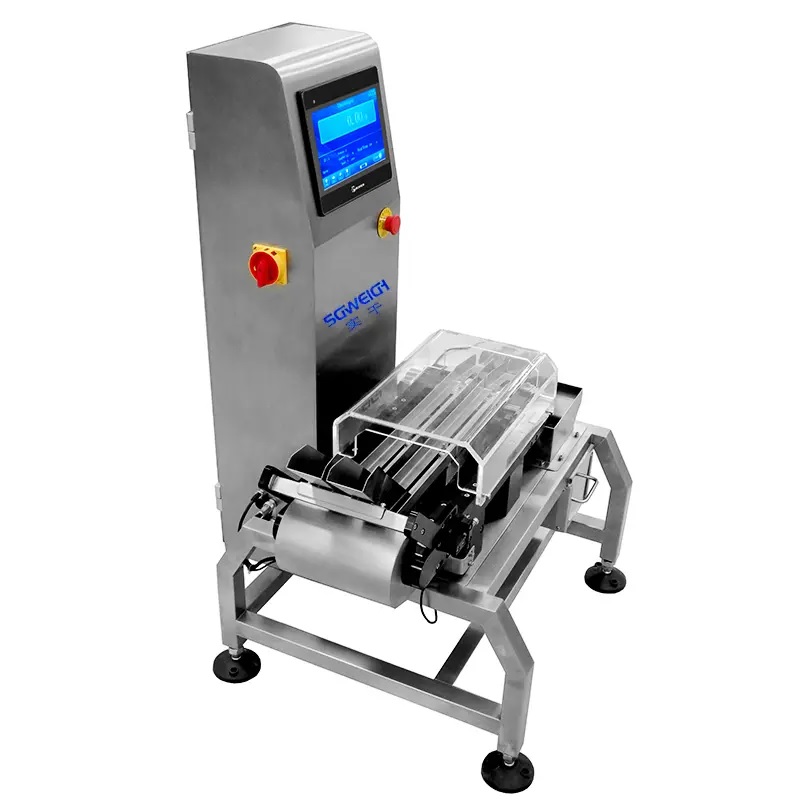

A 2 Lane Stick Checkweigher is a high-speed dynamic weighing system designed for stick packs, strip sachets, powder sticks, coffee sticks, pharmaceutical sachets, nutritional supplements, and other small packaged products. The dual-lane structure allows two independent product streams to be inspected simultaneously, significantly improving production efficiency while maintaining highly accurate weight control.Dual-lane Sachet Pouch Checkweigher is widely installed after multi-lane stick pack filling and packaging machines to ensure every package meets target weight requirements and regulatory standards.
◆ Technical Parameters
| Model | SG-2X |
| Weighing range | 1-50g |
| Product restrictions | L:180 W-40 H:2-20(mm) |
| Sorting accuracy | ±0.01g (Depends on products) |
| Graduation value | 0.01g |
| Maximum speed | 40-60 pcs/min (one lane) |
| Belt width | 100mm (customizable) |
| Machine weight | about 80kg |
| Power supply | AC220V±10%50HZ |
| Power | about 100W |
| Main material | SUS304/316 |
◆ Key Advantages
1.Dual-lane design for simultaneous weighing of two product streams.
2.High-precision load cells with accuracy up to ±0.01g depending on product characteristics.
3.Independent weighing and reject control for each lane.
4.Automatic rejection of underweight and overweight products.
5.Real-time weight feedback to upstream filling machines.
6.High-speed operation suitable for continuous stick pack production.

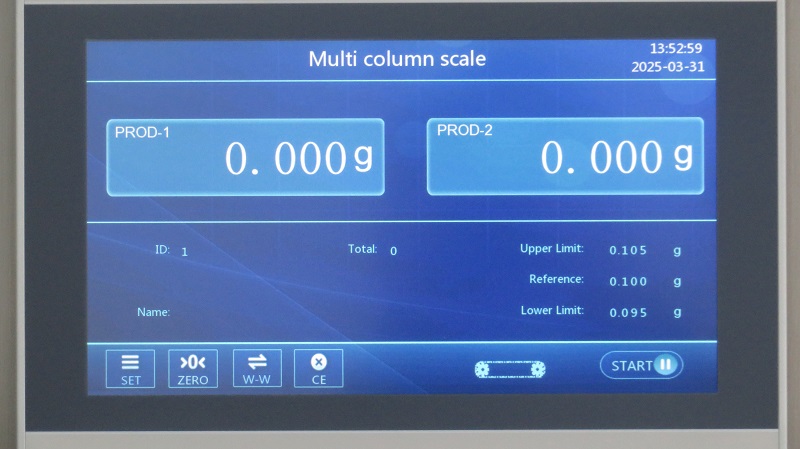

7.User-friendly touchscreen HMI with recipe storage.
8.Data collection, production statistics, and audit trail functions.
9.Stainless steel SUS304 construction for hygienic environments.
10.Supports GMP, HACCP, and food safety requirements.
11.Ethernet, USB, RS232/RS485 communication options for Industry 4.0 integration.
12.Compact footprint for easy installation on existing packaging lines.
◆ Application Scope
The 2 lane stick checkweigher is widely used in:
Instant coffee stick packs
Protein powder sachets
Pharmaceutical granules
Nutritional supplement sticks
Milk powder sachets
Sugar and sweetener sticks
Tea powder packaging
Health care products
Cosmetic sample sachets
Chemical powder packaging
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
