◆ Product Overview

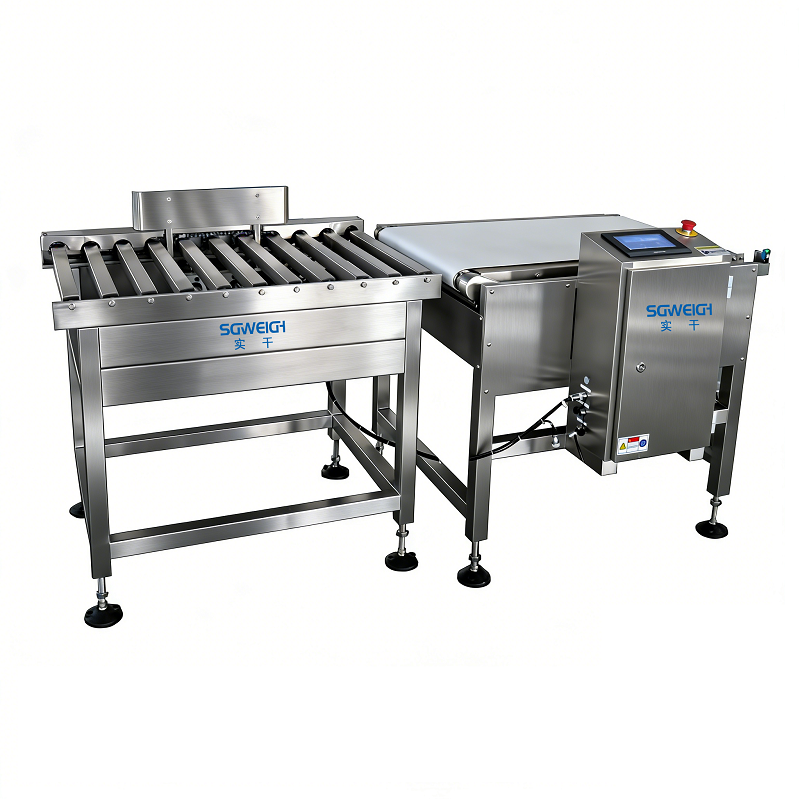

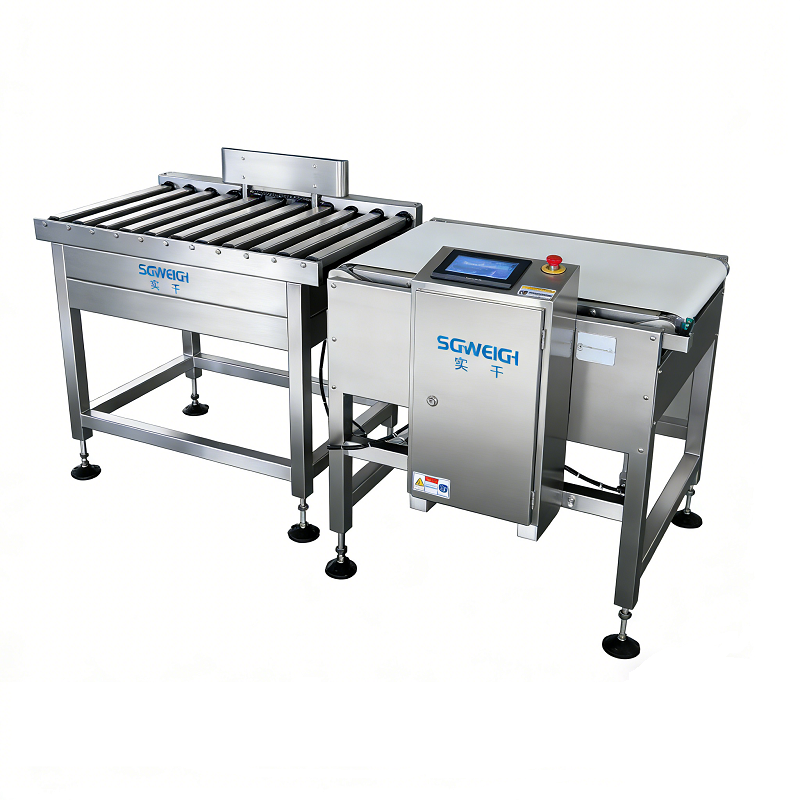

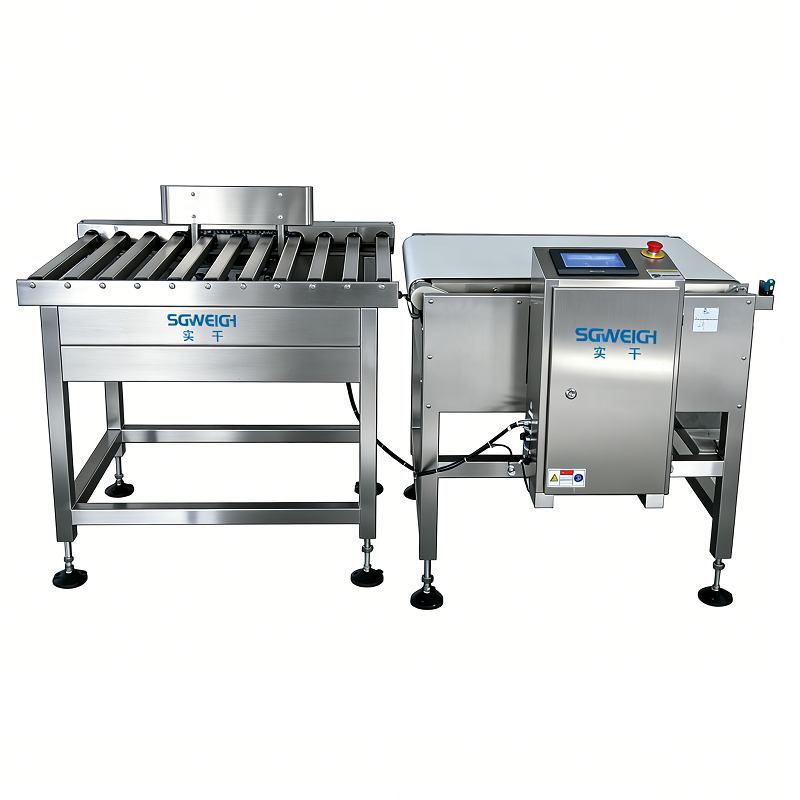

Heavy Weight Conveyor Checkweigher is an industrial in-motion weighing system designed for accurately checking the weight of heavy products, large cartons, bags, boxes, containers and other bulky items during production and packaging.
The system continuously weighs each product while it moves across the conveyor, compares the measured weight with preset upper and lower limits, and automatically identifies and rejects underweight or overweight products. Its heavy-duty conveyor structure and high-capacity weighing system make it suitable for demanding production environments where conventional small-product checkweighers may not be appropriate.
The Heavy Duty Checkweigher can be configured with different conveyor lengths, weighing capacities, belt widths and automatic reject mechanisms according to product dimensions and production requirements.
◆ Technical Parameters
| Type | SG-600 |
| Weighing Range | 0.5-50Kg |
| Limited of product | L: 800 W:600 H: 3-400mm |
| Accuracy | ±20g Depends on product |
| Division Scale | 1g |
| Belt Speed | 0- 40 m/min |
| Max Speed | 30 pcs/min |
| Belt Width | 600mm |
| Machine Weight | 80+50kg |
| Power Supply | AC 110/220V ±10% 50HZ |
| Power | 500W |
| Main Material | SUS304/316 stainless steel |
◆ Key Advantages
1. Heavy‑duty construction for demanding industrial applications
2. High‑capacity weighing system for heavy and bulky products
3. Accurate dynamic weighing without stopping the production line
4. Automatic underweight and overweight detection
5. High‑strength conveyor belt designed for heavy loads
6. Adjustable weighing range according to product requirements
7. Automatic reject system for out‑of‑tolerance products
8. Large and easy‑to‑use touchscreen interface
9. Real‑time weight monitoring and production statistics
10. Multiple communication interfaces for production‑line integration
11. Stainless steel construction available for demanding environments
12. Custom conveyor dimensions and weighing capacity available
13. Can be integrated with metal detectors and other inspection equipment
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
