■ Product Overview

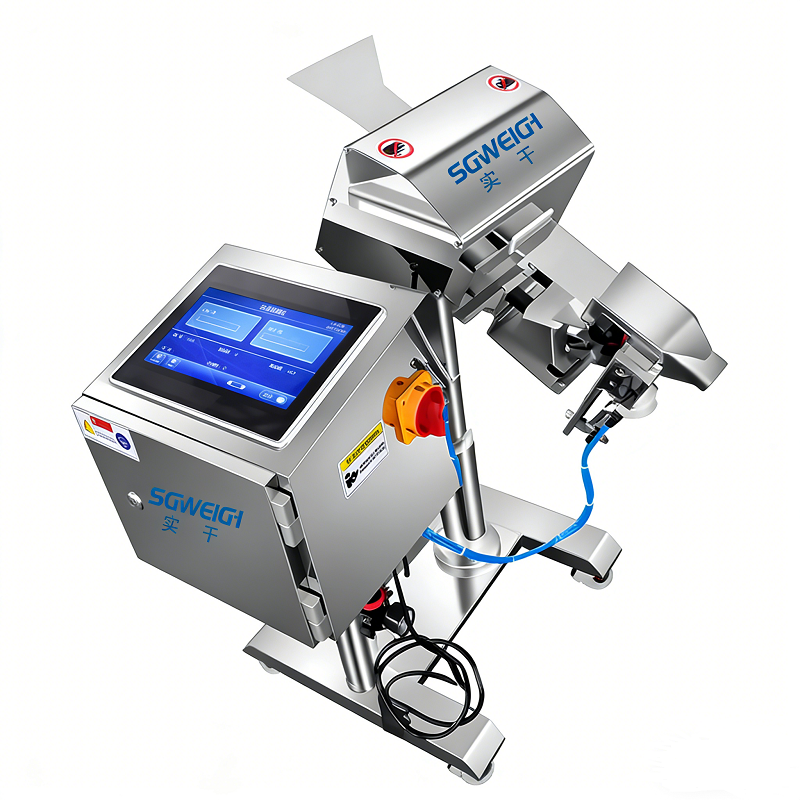

A Metal Detector for Tablets and Capsules is a high-precision inspection system specifically engineered for the pharmaceutical industry. It is designed to detect and reject ferrous, non-ferrous, and stainless steel contaminants in tablets and capsules during production.
Using advanced electromagnetic detection technology, the High Speed Capsule Metal Detector ensures compliance with strict regulatory standards such as GMP, HACCP, and FDA requirements. It is widely used in pharmaceutical manufacturing lines to guarantee product safety, protect brand reputation, and prevent costly recalls.
■ Tech Specifications
| Type | SG-M50 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Note: The above sensitivity is when the test block freely falls through the detection pipeline. The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity. | |
■ Main Features
1.High-sensitivity detection for Fe, Non-Fe, and SS metals.
2.Automatic rejection system for contaminated products.
3.Dust-proof and anti-vibration design for pharma environments.
4.Tool-free disassembly for easy cleaning and maintenance.
5.Real-time monitoring and data recording.
6.Compliant with GMP and FDA standards.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
