◆ Product Overview

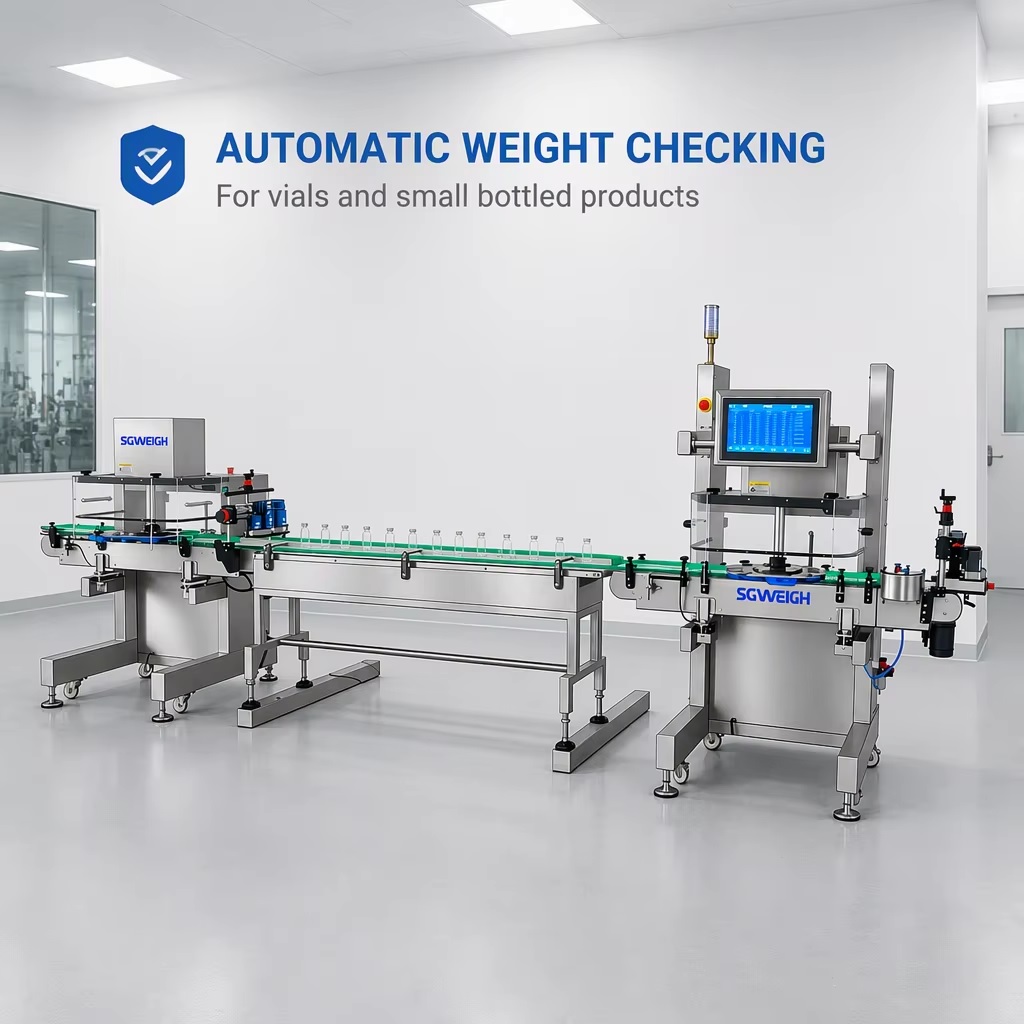

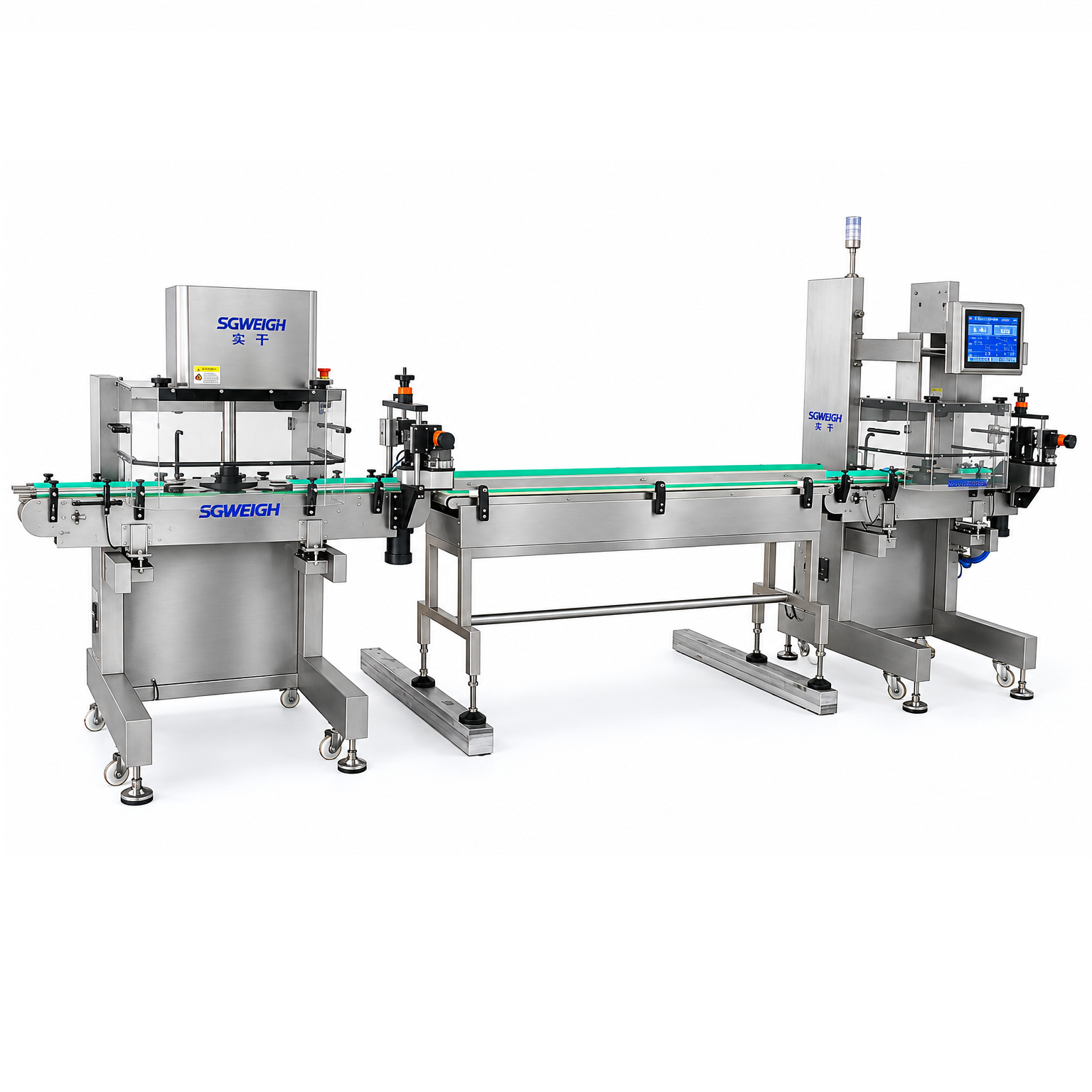

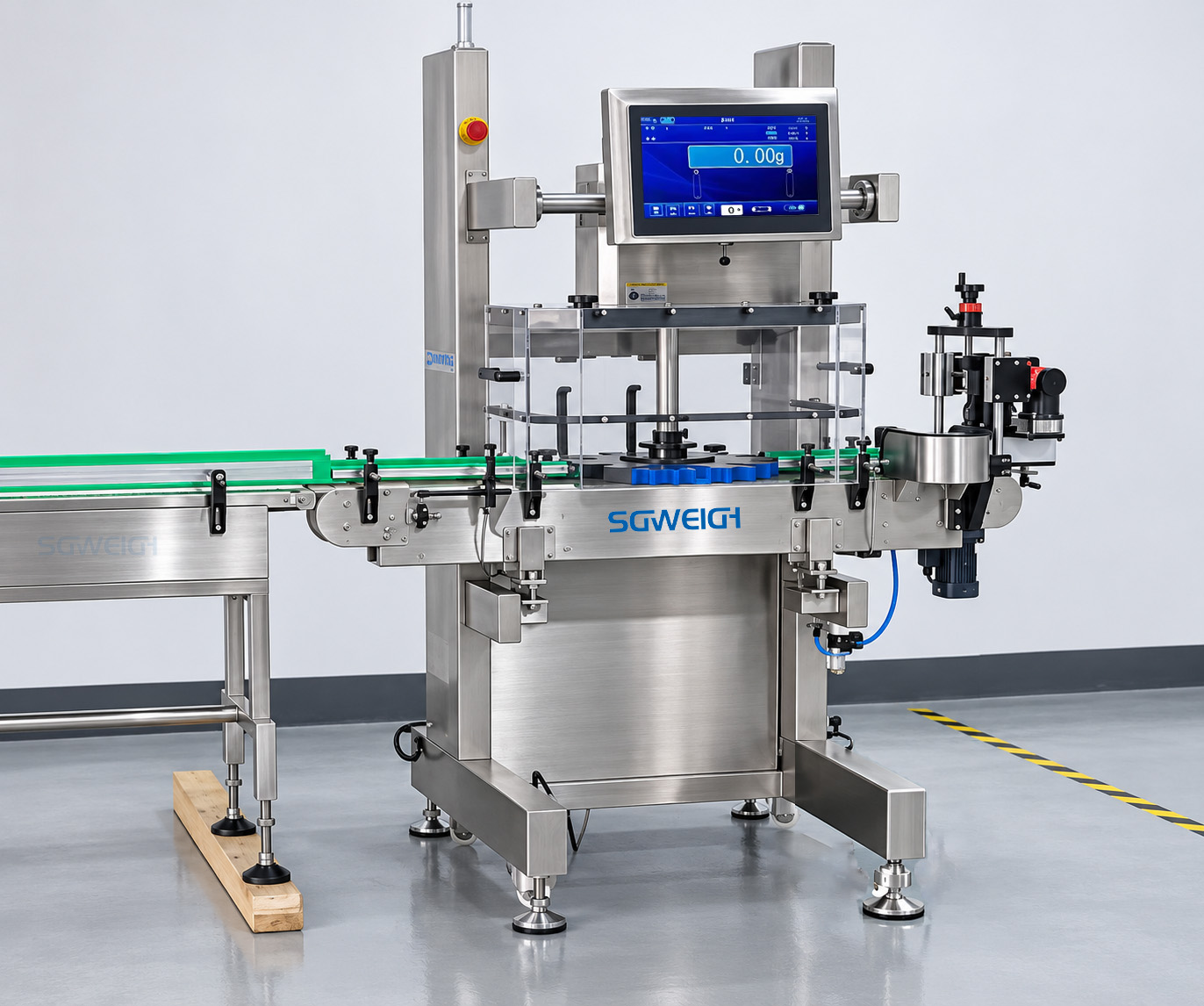

This Rotary Bottle Checkweigher System consists of two synchronized checkweighing units to achieve accurate net weight testing for filled pharmaceutical bottles.
1. Checkweigher A first captures the tare weight of empty bottles.
2. Tare weight data is transferred to Checkweigher B in real time.
3. Checkweigher B measures the gross weight of filled medicine bottles after filling.
4. The system automatically subtracts the pre-recorded tare weight to calculate the precise net weight of medicine inside each bottle.
5. Products out of preset weight tolerance will be automatically identified and rejected without interrupting continuous production.
This tare-gross weight separation design eliminates weight deviation caused by inconsistent empty bottle weight, greatly improving weighing accuracy for pharmaceutical filling lines.
◆ Technical Parameters
| Type | SG-ZAB |
| Weighing scope | 2-300g |
| Restrictions of product | Ф10-100 Н:20-200(mm) |
| Accuracy | ±0.01g (Depends on products) |
| Division scale | 0.01g |
| Belt Speed | 0-50m/min |

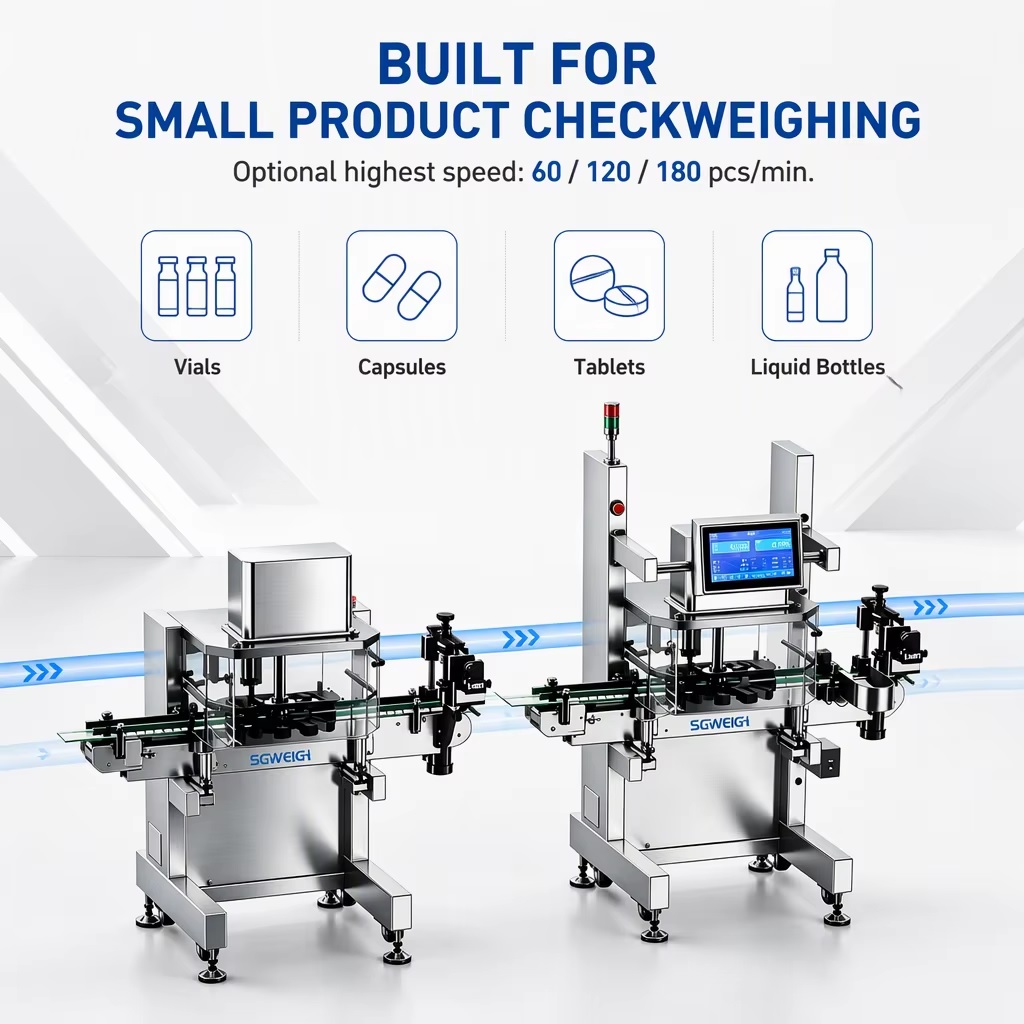

| Highest speed | 60pcs/min,120pcs/min,180pcs/min(Optional) |
| Chain plate width | 100mm |
| Powder supply | AC220V 50HZ |
| Power | about 800W |
| Main material | SUS304/316 |
| Weight of machine | about 500Kg |
◆ Key Advantages
1. Real-time tare weight data transmission between two checkweighers.
2. Automatic net weight calculation for filled drug bottles.
3. Auto detection & rejection of underweight / overweight bottles.

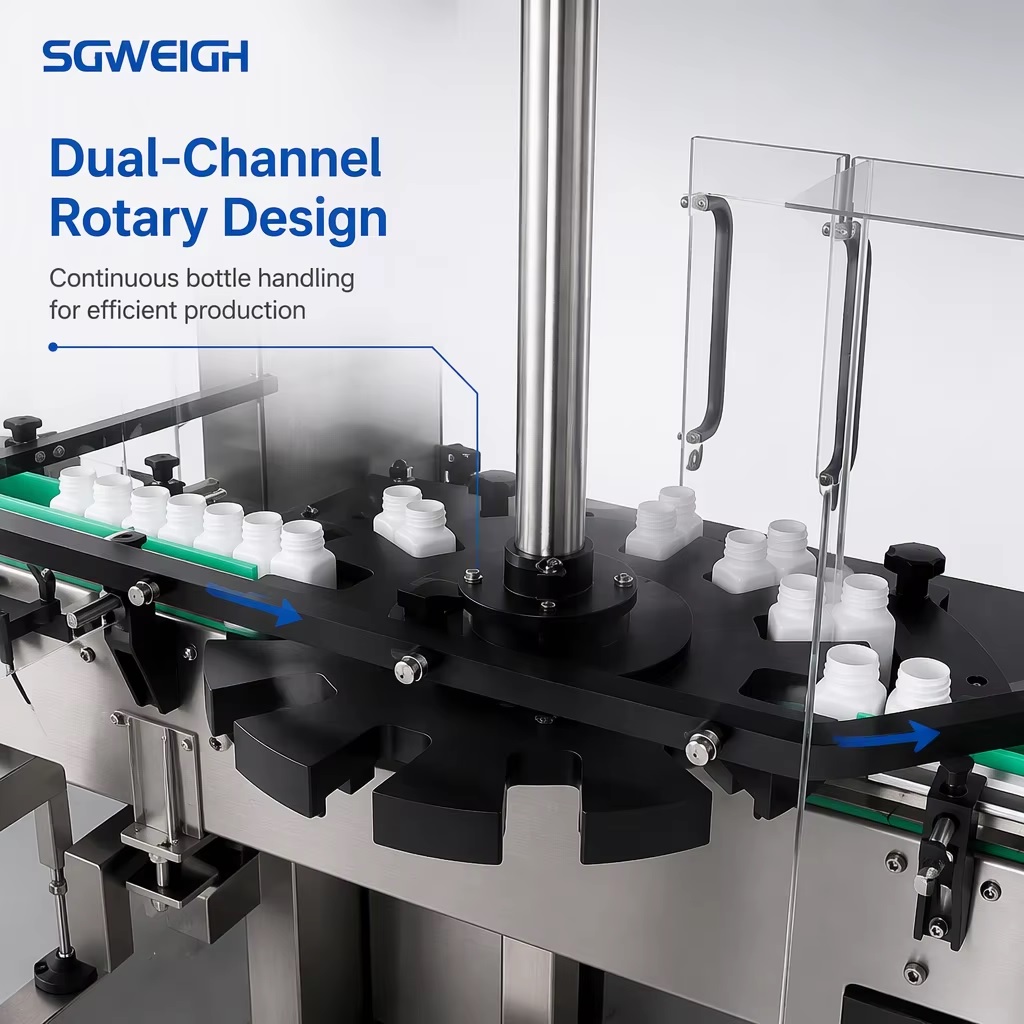

4. Rotary structure, stable high-speed inline weighing for round bottles and vials.
5. GMP compliant, suitable for pharmaceutical production environments.
6. Data logging for batch production records, compatible with 21 CFR Part 11 optional.
7. Easy integration with existing bottle filling, capping and labeling production lines.

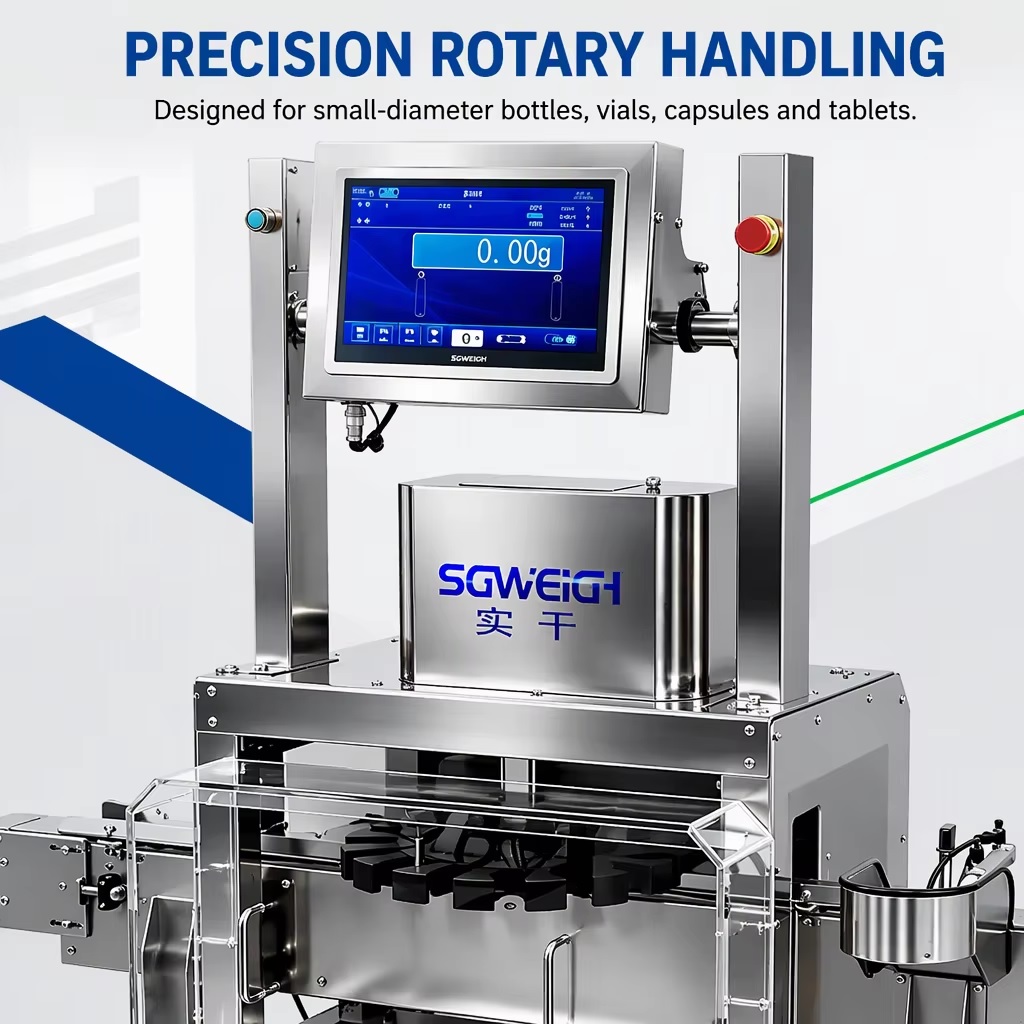

8. Touch screen operation, adjustable weight threshold and reject parameters.
◆ Application Scope
Pharmaceutical vials, oral liquid bottles, syrup bottles, small round plastic bottles in pharma, health supplement and liquid filling industries.
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
