◆ Product Overview

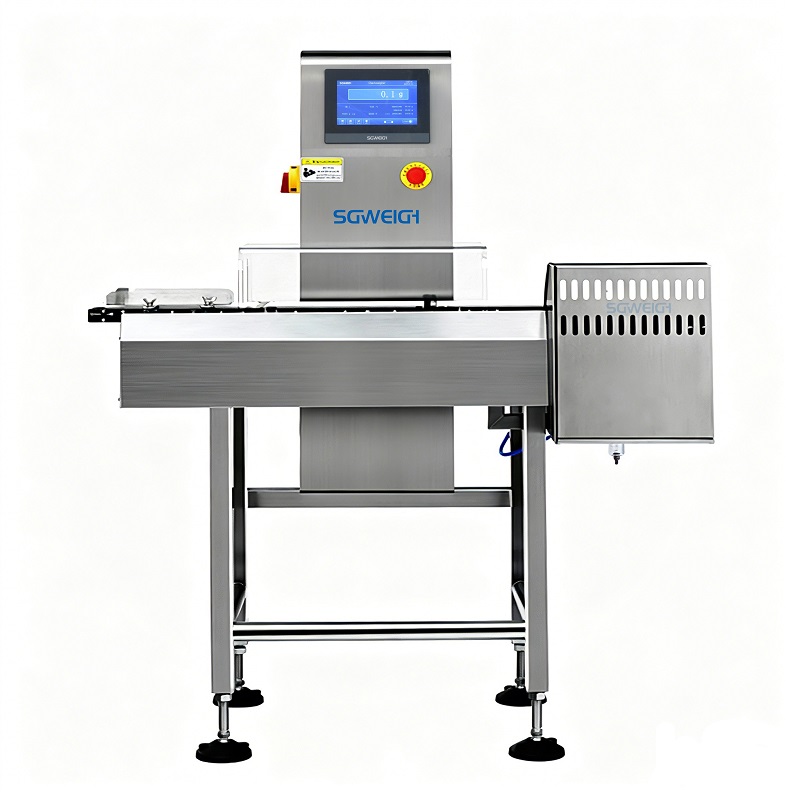

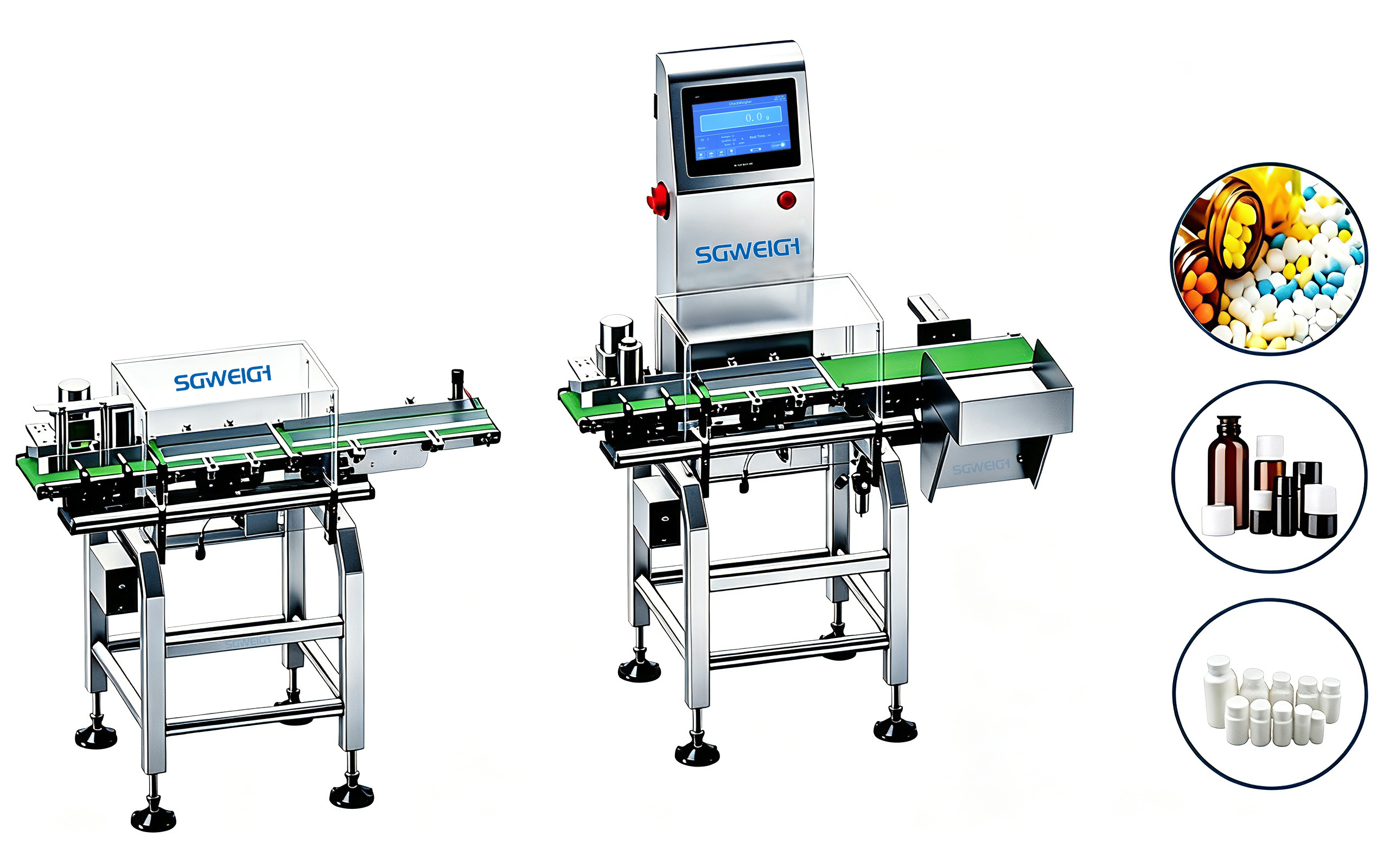

The SG-150AB Pharmaceutical Bottle Dual Checkweigher is a high-precision online weighing solution specially designed for pharmaceutical bottle filling lines. The system adopts an innovative dual-checkweigher net weight calculation technology, enabling accurate weighing of each filled bottle by automatically compensating for the weight variation of empty containers.

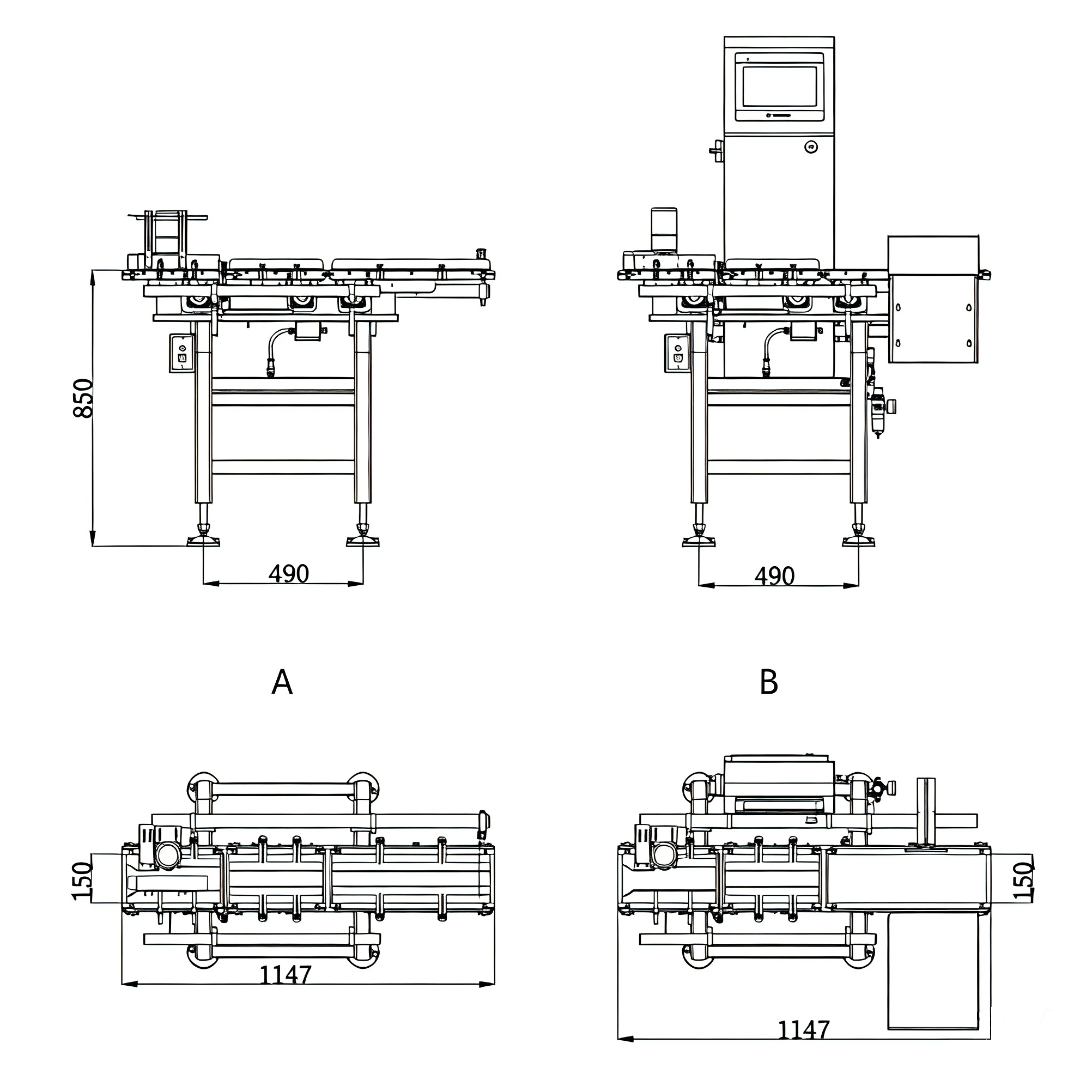

Unlike conventional checkweighers that only measure gross weight, the SG-150AB consists of Checkweigher A and Checkweigher B working synchronously. Checkweigher A first measures the tare weight of every empty bottle and transmits the weight data to Checkweigher B in real time. After filling, Checkweigher B measures the gross weight of the filled bottle, automatically subtracts the corresponding tare weight, calculates the precise net product weight, and instantly determines whether the product meets the preset weight specifications. Bottles outside the tolerance range are automatically rejected, ensuring 100% net weight inspection throughout the production process.
◆ Technical Parameters
| Type | SG-150AB |
| Weighing Range | 3-500g |
| Limited of product | L: 200 W:150 H: 3-200mm |
| Accuracy | ±0.1g Depends on product |
| Division Scale | 0.1g |
| Belt Speed | 0- 60m/min |
| Max Speed | 150 pcs/min |
| Belt Width | 150mm |
| Machine Weight | 160kg |
| Power Supply | AC 110/220V±10% 50HZ |
| Power | 200W |
| Main Material | SUS304/316 |
◆ Key Advantages
1.Dual-checkweigher architecture for automatic tare weight compensation.
2.Real-time transmission of empty bottle weight data.
3.Automatic net weight calculation after filling.
4.High-speed in-motion weighing with excellent repeatability.
5.Automatically rejects underweight and overweight bottles.
6.Eliminates weighing errors caused by bottle weight variation.
7.Supports capsules, tablets, powders, granules and liquid products.
8.High-precision load cell with stable weighing performance.
9.Easy integration with bottle filling and capping lines.
10.PLC + touchscreen HMI with recipe management.
11.Statistical data collection and production reports.
12.Data traceability compliant with GMP validation requirements.
13.Compatible with MES, ERP and SCADA communication.
14.Stainless steel hygienic design for pharmaceutical environments.
15.Tool-free product changeover and simple maintenance.
◆ Application Scope
- Capsule bottle filling
- Tablet bottle packaging
- Softgel bottle inspection
- Powder bottle filling
- Granule bottle packaging
- Liquid medicine filling
- Nutraceutical bottle production
- Healthcare supplement bottle packaging
