■ Product Brief

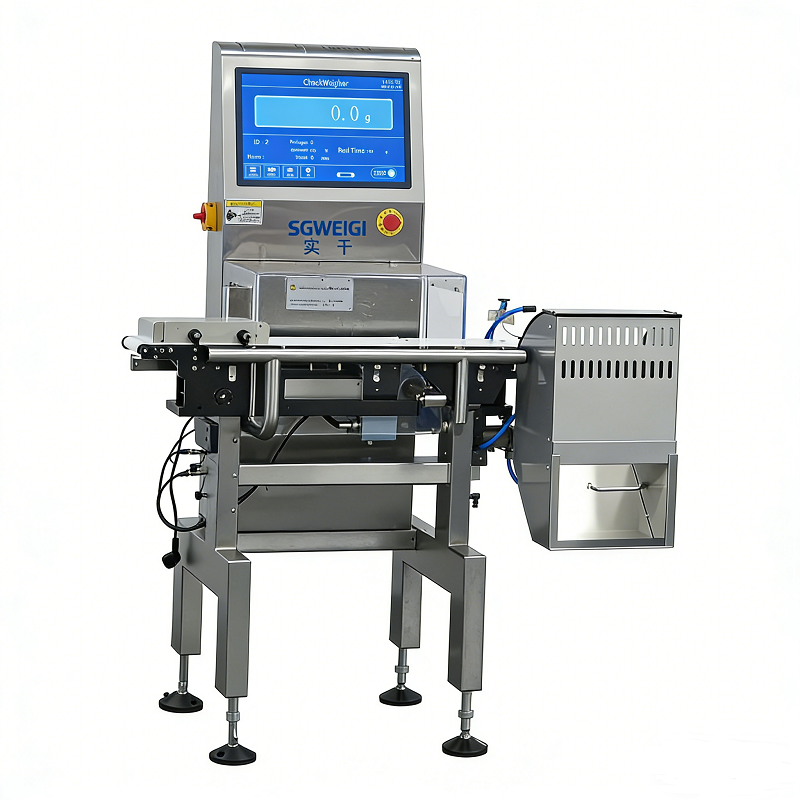

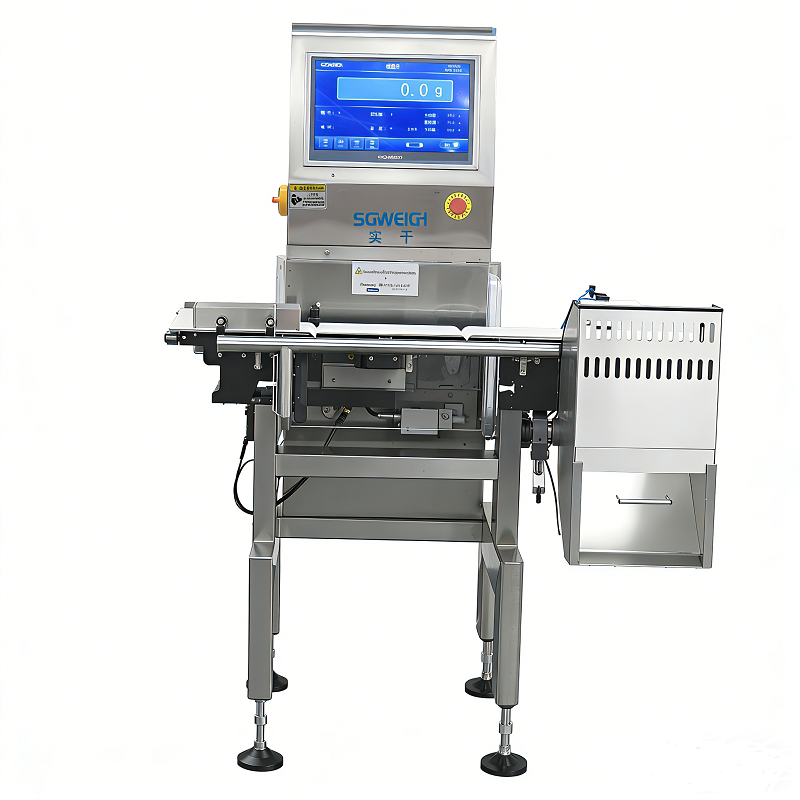

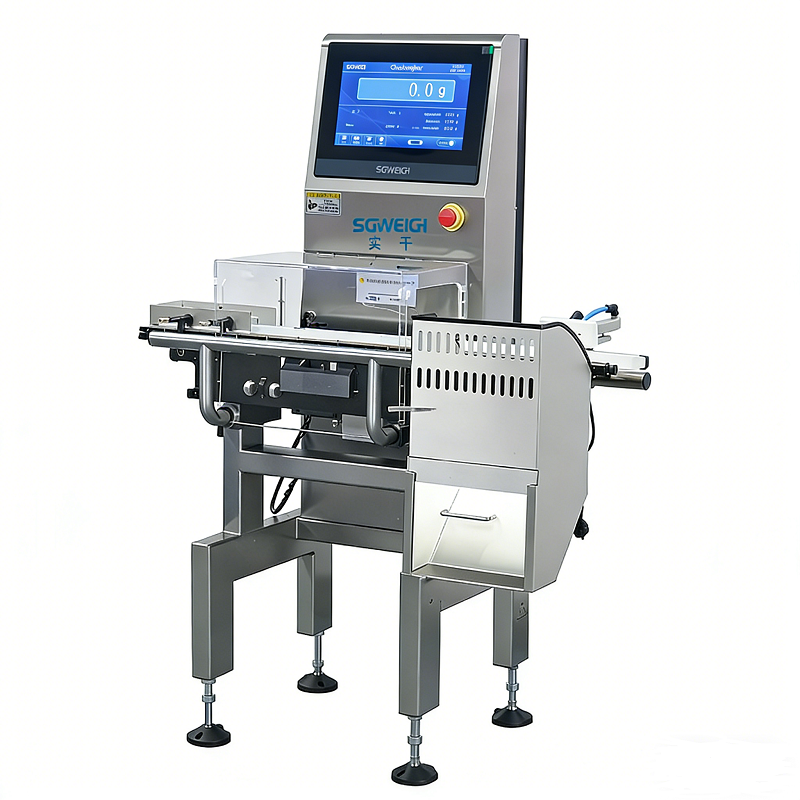

A Dynamic Checkweigher System is an automated in-motion weighing solution designed to accurately inspect the weight of products as they move continuously along a production line. Unlike static weighing, Checkweigher measures each item without stopping the conveyor, ensuring 100% weight inspection while maintaining high production efficiency. It is widely used in the food, pharmaceutical, cosmetics, chemical, logistics, and consumer goods industries to verify product weight, reduce giveaway, and ensure compliance with quality standards.
■ Technical Data
| Type | SG-150H |
| Weighing Range | 3-500g |
| Limited of product | L: 200 W:150 H: 3-200mm |
| Accuracy | ±0.1g Depends on product |
| Division Scale | 0.1g |
| Belt Speed | 0- 90m/min |
| Max Speed | 250 pcs/min |
| Belt Width | 150mm |
| Power Supply | AC 110/220V±10% 50HZ |
| Power | 100W |
| Main Material | SUS304/316 |
■ Product Highlights
1.High-speed in-motion weighing with exceptional accuracy.
2.100% automatic inspection of every product.
3.Detects underweight, overweight, and missing components.
4.Automatic reject system for non-conforming products.
5.Supports cartons, bottles, pouches, bags, cans, trays, and boxes.
6.Easy integration with conveyors, metal detectors, and labeling systems.
7.Real-time production statistics and weight data recording.
8.User-friendly touchscreen with multiple product memory settings.
9.Durable stainless steel construction for hygienic production environments.
10.Customizable solutions for various industries and production capacities.
■ Industry Applications
■ Company Profile
■ Clients
■ Exhibition
■ Package & Logistics
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
